Get The Highlights
Laser Power Meter
SMA 905 + NFC Connector
Highly visible Green Aiming Beam (520nm) for more precise surgical area localization
New Immersive Display in 8.8-inch Ultra-wide offering superior visibility.
OEM customization support
Exploring New Standards in Surgical Lasers
MZ features PIOON’s world-first laser power meter and automatic calibration function, paired with the latest green indicator light. The brand-new software design aims to create an immersive experience, striving to provide doctors worldwide with precise operational control and clinical outcomes. We hope MZ can lead the future direction of surgical laser development: simplicity, speed, and ultimate precision.
Hardware Performance

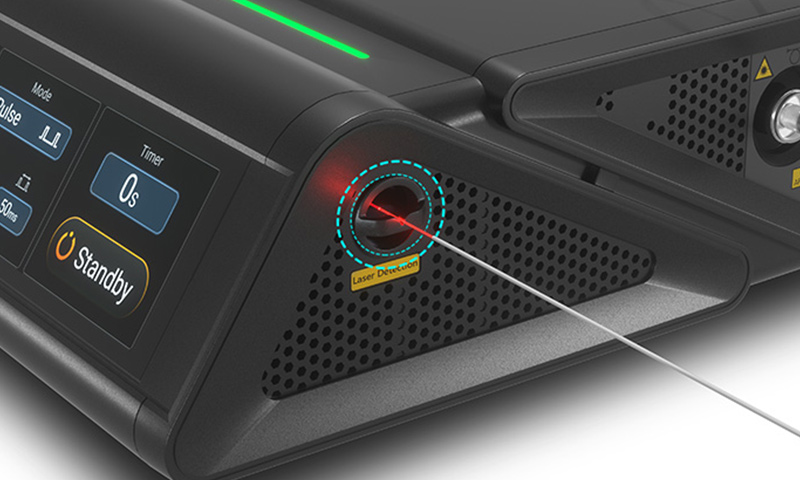

Laser Power Meter
With the innovative laser power meter, the MZ allows users to view the actual power. If there is any deviation, the system will automatically calibrate to the input value. This is the most powerful feature of PIOON lasers to date, ensuring power precision in treatment.
Green Aiming Beam (520nm)
MZ uses a 520nm green indicator light, which is more easily detected by the human eye compared to red light (650nm), especially in environments with strong red background. Users can precisely locate using the green light without experiencing fatigue over long periods, ensuring target precision in treatment.
SMA905 + NFC Connector
Introducing the popular NFC feature, which helps the device identify secure certified fibers and record usage logs (privacy protected and visible ONLY to users). This feature is customizable for distributors, ensuring usage precision in treatment.
Besides Top 3 Innovation, MZ features a classic black ABS+PC shell with an integrated wedge design, aiming to represent PIOON's professionalism and innovation. This device uses a built-in adapter with direct power connection. The standard configuration of the device is 980nm 30W + 1470nm 15W.
Software Performance

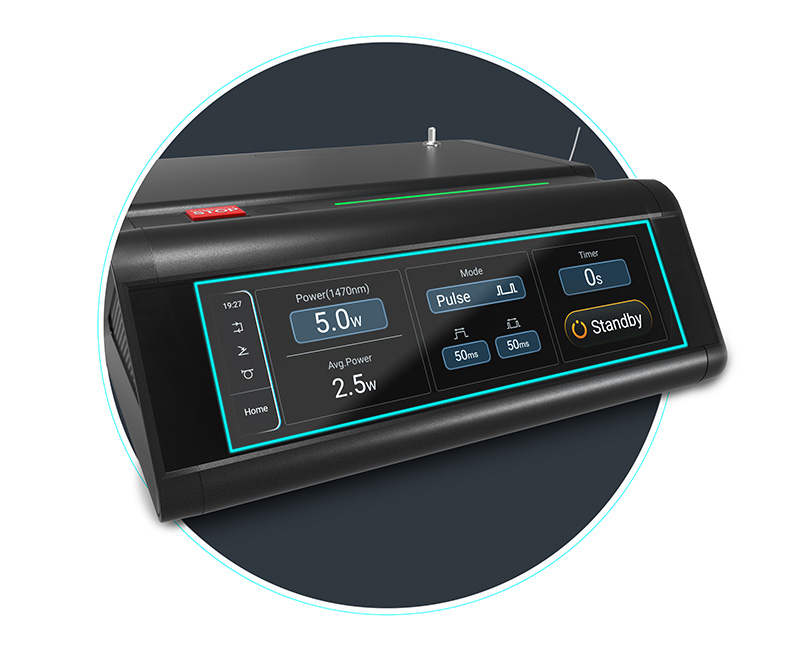

With an 8.8-inch Ultra-wide screen, MZ features a brand-new software design that simplifies complexity, aiming to highlight important information such as treatment parameters and function names.
We hope to help users focus on the treatment, ensuring that even from a distance, the screen parameters are clearly visible. This further guarantees the stability and professionalism of the surgery.
Here are the wavelengths and power levels that this device can achieve:
| No | Wavelength | Power |
|---|---|---|
| 1 | 1470nm | 20W |
| 2 | 1940nm | 10W |
| 3 | 980nm+1470nm | 30W+15W |
| 4 | 1210nm+1470nm | 10W+10W |
Technical Specification
| Screen size: | 8.8 inches |
| Screen resolution: | Retina HD level |
| Dimensions: | 290mm x 280mm x 110mm |
| Shell color: | Classic Black |
| Storage: | 32GB(≈ 1,000,000 Protcols+ 500 HD Treatment Tutorials) |
| Fiber connector: | SMA905 + NFC |
| Operating system: | SmartOS 2.0 (MZ Version) |
The medical laser device complies with the following standards
| IEC 60601-1:2020 | ISO 14971:2019 |
| IEC 60601-1-2:2020 | ISO 24971:2020 |
| IEC 60601-2-22:2019 | ISO 10993-1:2018 |
| IEC 60825-1:2014 | ISO 15223-1:2021 |
| IEC 62304:2015 | ISO 14971:2019 |
| IEC 62366-1:2020 |
Medical-Grade Instruments and Accessories
Handpieces
Surgical Zoom Handpiece
Minimum spot Variable-zoom High efficiency transmission For contactless applications:Spider Vein/Nail fungus/Vascular Dermatosis
LEARN MORE
Focusing Handpiece
Fiber 300um, 400um SMA905 connector Magnification confocal: 1:1 Spot diameter: 1mm, 2mm and 3mm For non-contact treatment:Spider VeinNail fungusVascular Dermatosis
LEARN MORE
Surgery Handpiece
It can match with the mainstream laser machine all over the world. Any surgical laser machine of pluggable fiber, SMA905 or FC connector are all compatible
LEARN MORE
ENT Handpiece
Include 7 pieces cannula suitable for 200um-600um fiber Offering you a wide choice of materials, designs and sizes to perform any ENT procedure with precision and speed.
LEARN MORE
Lipo Handpiece Pro
It is possible to use different cannulas depending on the area, which is going to be treated. Include 5 pieces cannula Suitable for 600μm fiber Length: 100mm,150mm,200mm,250mm,300mm
LEARN MORE
Lipolysis Handpiece
Include 5 pieces cannula Suitable for 200-600μm fiber It is possible to use different cannulas depending on the area, which is going to be treated. Length: 100mm,150mm,200mm,250mm,300mm
LEARN MORE
Gynecology Handpiece
Fiber diameter: 600um Length:219.5mm Outside diameter: 35mm Inside diameter: 24mm Standard SMA905 connector Suitable for vaginal rejuvenation, Colposcopy Applications, HPV lesions, Cysts of the mucosa, Cervical intraepithelial neoplasia, etc.
LEARN MOREMedical Fibers and Tips
Side Fiber
Core[um]: 600 Fiber tip: oblique 8 degrees High power F-SMA905 connector Extension sleeve available in various colors Self-design on request
LEARN MORE
Conical Fiber
Hemorrhoid Fiber Probe 600μm NA=0.22 Distal end OD: 1800μm CE approved Sterile Standard SMA905 connector Effective laser emission into the hemorrhoidal node Special conical design for cutting and coagulation Maximized stability and durability
LEARN MORE
Holmium Fiber
Standard SMA/FC connector Core[um]: 272; 365; 550 Flat/air gap connector available Extension sleeve available in various colors Standard length 3m, NA=0.22/0.37 Specifically for use with most holmium and Nd:YAG laser systems on the market. Designed for durability,flexibility and versatility in urological procedures.
LEARN MORE
Radial Fiber
Connector: standard SMA 905 Fiber diameter: 400/730um, 600/750um Glass OD: 1.2mm Glass length: 10mm Transmittance: >90% ETO sterilization, double packing 360¡ã radiation and optimized handling, standard for endovenous laser therap
LEARN MORE
Bare fiber
Bare Fibers(200μm) Length: 3m;Bare Fibers(300μm) Length: 3m;Bare Fibers(400μm) Length: 3m
LEARN MOREAccessories
Professional Laser Safety Glasses - Made in Germany (Recommend)
Essential protective gear for laser operations, designed to absorb or reflect specific laser wavelengths effectively, safeguarding the eyes from harm. Compliant with the European Committee for Standardization (CEN) EN 207 standard.
LEARN MORE
Multilingual instruction manual
A multilingual instruction manual can enhance user experience, meet regulatory requirements, boost brand image, and improve customer support efficiency.
LEARN MORE
Packing Box
Packing Box is specifically designed to provide secure and protective storage for diode lasers.
LEARN MORE
Bare fiber holder
Facilitating the placement and stretching of optical fibers during the laser operation process.
LEARN MORE
Laser Safety goggles
Essential protective equipment for laser operations, capable of effectively absorbing or reflecting specific wavelengths of laser light to prevent eye injury.
LEARN MORE
Medical-grade Plug
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Bluetooth Medical-grade Foot Pedal (Optional)
Foot pedal, tested for 500,000 cycles, with accompanying test reports, supporting both wired and wireless Bluetooth connectivity.(Optional)
LEARN MORE
Medical-grade Foot Pedal (Optional)
Waterproof foot pedal, passing the waterproof test, with a 500,000 times usage test report.（Optional）
LEARN MORE
