H1 sits between entry-level and professional-grade in terms of performance and functionality. With its competitive pricing, it offers higher power and more functionality options, such as 20W power and 57 presets, making it a cost-effective choice for medium-sized clinics or experienced dentists.
Top-tier technology
Pioon team started designing and manufacturing dental lasers in 2007. Through many years of market validation, H1 has been improved to be a classic dental laser of the worldwide with stable performance and reliable quality.
Featuring an all-copper cooling system
our product boasts exceptional heat dissipation capabilities and long-term stability. This ensures consistent laser output and extends the lifespan of the laser, delivering reliable performance over time.

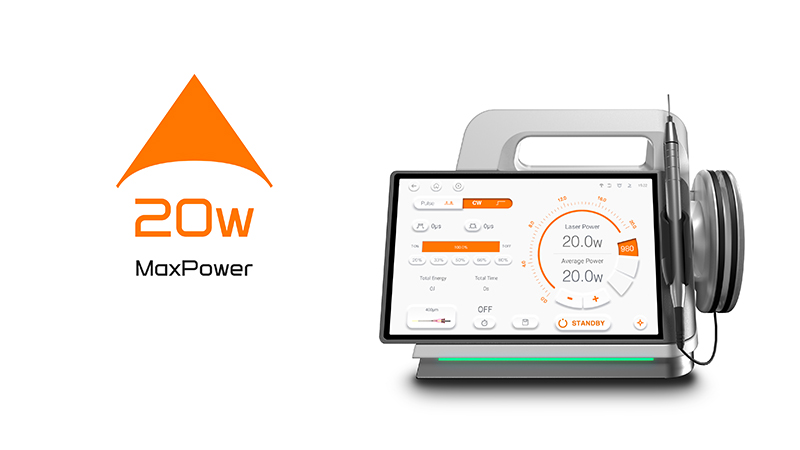

H1 dental laser features a maximum power output of 20W
providing stable performance. Compared to a 10W laser, it covers a broader range of clinical applications.
The control system, powered by a multi-core CPU
ensures redundancy and monitoring, meeting the stringent FDA requirements for medical lasers. This advanced technology guarantees reliability and safety, making it a top choice for medical professionals.
The intelligent software system
unlike traditional industrial control systems, offers simple operation, a user-friendly interface, excellent human-machine interaction, and rich functionality. It features an intuitive user interface that is easy to navigate, significantly enhancing user efficiency. Additionally, the intelligent software system supports personalized settings to meet various user needs. Its multifunctionality and high performance make it outstanding in diverse dental application scenarios.
A wide range of Applications
H1 offers a wide range of functions to meet the needs of dental surgery, combining practicality and versatility.
With 57 presets treatment procedures, any dentist, who is new to dental laser, can start the laser treatment with a simple swipe and click.
The massive multimedia tutorial content in H1 can greatly accelerate the process to master the laser skills. You can change the preset values with a simple touch in Expert Mode, getting the most out of your H1.
Highlight H1's market recognition and reputation
H1 enjoys a strong market presence and recognition, backed by comprehensive clinical resources, educational support, and registration assistance. Below are the key aspects highlighting H1's market recognition and reputation:
Market Recognition
H1 is well-known in the market, enjoying a good reputation and recognition from dentists and professionals.
Pioon, as the gold sponsor of the Academy of Laser Dentistry, is committed to providing all our customers the most professional and
convenient education channel.
Qualified clinicians and specialists provide dental laser training to buyers worldwide.
Clinical Resources
Qualified clinicians provide guidance to solve any clinical query.
Clinical video tutorials for best understanding.
Educational Resources
Qualified clinicians and specialists provide dental laser training to buyers worldwide.
Registration Assistance
Professional regulatory department supports you in registering for market access.
Classic Design
The design of H1 is timeless, featuring a traditional yet intuitive user interface. Its classic aesthetics ensure ease of use and provide an excellent user experience. The 2K Ultra HD touch screen display makes the laser operation more easy and convenient, what’s more, it boasts the highest resolution in the industry, providing surgeons with an exceptional view during procedures. Its outstanding touch controls meet electromagnetic compatibility standards for medical devices, ensuring both precision and reliability.
CE0123
ISO13485
The advantages of dental laser treatment
Dental laser technology revolutionizes dentistry with its precision, minimal discomfort, and accelerated healing, making it an ideal alternative to traditional surgical methods such as electrocautery and scalpels. Patients experience less pain and swelling, faster recovery times, and often require fewer follow-up visits. Moreover, lasers sterilize as they work, lowering the risk of infection. This technology enables dentists to perform a variety of procedures with greater efficiency and effectiveness, from cavity treatment to gum disease therapy and even cosmetic enhancements.
H1 with 980nm single wavelength offers several clinical advantages in the field of dentistry:
Anti-inflammatory Properties:
Lasers are commonly used for their anti-inflammatory effects in dentistry, and the 980nm laser has shown promising results in this regard. It can help treat oral infections and inflammation by inhibiting bacterial growth and reducing inflammatory responses.
Endodontic Treatment:
The 980nm laser is also employed in endodontic treatments, accurately removing infected pulp tissue while promoting pulp tissue regeneration, thereby enhancing treatment outcomes.
Cosmetic Restoration:
In cosmetic dentistry, the 980nm laser can be used for teeth whitening and removing surface pigmentation, reducing the occurrence of discolored teeth and improving overall dental aesthetics.
Typical Applications
Exposure of Unerupted Teeth
Hemangioma
Granuloma
Hemostasis
Leukoplakia
Fistula
Lichen Planus
Oral Papillectomies
Hyperplasia
Fibroma
Mucocele
Oral Submucous Fibrosis(OSF)
Troughing
Vestibuloplasty
Soft-Tissue Crown Lengthening
Gingival Polyp
Exposure of Unerupted Teeth
Pulpotomy
Pulpotomy
Tongue Tie
Enamel Welding
Technical Specification
| Wavelength and Power | 980nm/20W | The wavelength and power of a laser determine its clinical application range |
| Operating Mode | CW/Pulsed | Lasers operating in continuous mode and pulsed mode yield different effects in clinical applications |
| Frequency | Up to 20KHZ | Frequency indicates the number of pulses emitted by a laser per second |
| Duty Cycle | Veriable | The duty cycle is crucial in laser pulse emission as it allows for precise control of the laser's on-time and off-time within a pulse duration. By ensuring that the laser off-time is shorter than the thermal relaxation time, thermal damage can be minimized. |
| Display | 7 inches 2K Ultra HD touch screen | Ultra-high-definition resolution enables viewing critical surgical details in video with exceptional clarity. |
| Control Software | Smart OS | An intelligent operating system facilitates smoother and more convenient human-machine interactions. |
| Fiber Connection | 200μm，300μm and 400μm with standard SMA905 connector | The SMA905 connector provides high-precision fiber alignment, effectively reducing reflections and minimizing insertion loss and return loss, thereby enhancing the overall performance of the optical system |
| Aiming Beam | Wavelength-650nm, Power-<2mW | A 650 nm indicator light with an output of less than 2 mW is safe for human exposure. |
|
Dimensions
(L*W*H) |
225mm 150mm 150mm | The compact design does not occupy much space, making it easy to place. |
| Weight | <=2KG Lightweight | facilitating portability. |
| Battery Capacity | 3500mAh | Sanyo Lithium-ion batteries provide long-lasting power, ensuring stable operation of the device during extended usage or continuous operation |
| Power Supply | 18VDC 5A | The 18VDC 5A power supply is equipped with overload protection, short circuit protection, and overheat protection, ensuring safe usage and preventing damage to devices. |
The medical laser device complies with the following standards
| IEC 60601-1:2020 | IEC 62366-1:2020 | ISO 14971:2019 |
| IEC 60601-1-2:2020 | IEC 80601-2-60:2019 | ISO 24971:2020 |
| IEC 60601-2-22:2019 | IEC 62304:2015 | ISO 10993-1:2018 |
| IEC 60825-1:2014 | ISO 15223-1:2021 | ISO 14971:2019 |
Medical-Grade Instruments and Accessories
Handpieces
Photobiostimulation Handpiece
Low-level laser biostimulation can be applied in wound therapy to speed up the wound healing, prevent infection and relieve the pain
LEARN MORE
TMJ Therapy Handpiece
Primarily used for oral therapy, such as temporomandibular joint (TMJ) therapy, it also includes small-sized TMJ tips for broader and more versatile applications.
LEARN MORE
Whitening Handpiece
Used for teeth whitening, it can divide the teeth area into four quadrants, with the whitening head precisely the width of one quadrant.
LEARN MORE
Multi-functional Handpiece
A direct connection fiber tip holder compatible with therapy handles, offering excellent compatibility and enabling multifunctional application
LEARN MOREMedical Fibers and Tips
Dental Laser Tip 200μm
The standard version is 15mm, with additional options of 5mm, 15mm, and 25mm tips, along with a 15mm circular tip suitable for root canal disinfection.
LEARN MORE
Dental Laser Tip 300μm
The standard version is 10mm, with additional options of 5mm, 10mm, 15mm, 50mm, and 100mm tips.
LEARN MORE
Bare fiber
Bare Fibers(200μm) Length: 3m;Bare Fibers(300μm) Length: 3m;Bare Fibers(400μm) Length: 3m
LEARN MORE
Dental Laser Tip 400μm
The standard version is 15mm, with additional options of 5mm, 15mm, and 25mm tips, along with a 15mm circular tip suitable for incision, excision, vaporization, ablation, coagulation, as well as soft-tissue curettage and sulcular debridement.
LEARN MOREAccessories
Professional Laser Safety Glasses - Made in Germany (Recommend)
Essential protective gear for laser operations, designed to absorb or reflect specific laser wavelengths effectively, safeguarding the eyes from harm. Compliant with the European Committee for Standardization (CEN) EN 207 standard.
LEARN MORE
Multilingual instruction manual
A multilingual instruction manual can enhance user experience, meet regulatory requirements, boost brand image, and improve customer support efficiency.
LEARN MORE
Medical-grade Adapter
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Packing Box
Packing Box is specifically designed to provide secure and protective storage for diode lasers.
LEARN MORE
Bare fiber holder
Facilitating the placement and stretching of optical fibers during the laser operation process.
LEARN MORE
Laser Safety goggles
Essential protective equipment for laser operations, capable of effectively absorbing or reflecting specific wavelengths of laser light to prevent eye injury.
LEARN MORE
Medical-grade Plug
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Bluetooth Medical-grade Foot Pedal (Optional)
Foot pedal, tested for 500,000 cycles, with accompanying test reports, supporting both wired and wireless Bluetooth connectivity.(Optional)
LEARN MORE
Medical-grade Foot Pedal (Optional)
Waterproof foot pedal, passing the waterproof test, with a 500,000 times usage test report.（Optional）
LEARN MORE
