S1Pro 1470nm Diode Laser

Reliable and Portable - Classic Choice for Surgery and Aesthetics

Hardware Performance

The S1Pro stands out in the medical laser design industry with its exquisite and compact appearance. Featuring an elegant metallic body, a super-fast cooling system, and a highly integrated modular design, the S1Pro delivers up to 12W of stable and continuous laser energy. Technology makes it possible.

Benefits of Software

User-friendly operation

Quick-start
User-friendly operation

Longest warranty service policy in the industry

Longest warranty service policy in the industry

Remote service Wi-Fi assistance

FDA Approved

FDA Approved

Technical Specification

Wavelength 1470nm ±10nm
Power 12W
Best balanced configuration
Display 7-inch RETINA touch display
HDR feature PPl>340
Aiming Beam 650nm < 2mW, adjustable density
Fiber Connection SMA905 Direct connect of medical fiber: ≥200um
Multi-purpose handpieces
Operating Modes Continuous (CW)/ Pulse / Single Pulse
Power Supply 100-240V AC,50/60Hz
Dedicated adapter + Optional power cord
Weight(without case) ≤2KG NW
Aluminum-magnesium alloy case
Dimensions 230mm*175mm*170mm

The medical laser device complies with the following standards

IEC 60601-1:2020 ISO 14971:2019
IEC 60601-1-2:2020 ISO 24971:2020
IEC 60601-2-22:2019 ISO 10993-1:2018
IEC 60825-1:2014 ISO 15223-1:2021
IEC 62304:2015 ISO 14971:2019
IEC 62366-1:2020

Medical-Grade Instruments and Accessories

Handpieces

Surgical Zoom Handpiece

Surgical Zoom Handpiece

Minimum spot Variable-zoom High efficiency transmission For contactless applications:Spider Vein/Nail fungus/Vascular Dermatosis

LEARN MORE
Focusing Handpiece

Focusing Handpiece

Fiber 300um, 400um SMA905 connector Magnification confocal: 1:1 Spot diameter: 1mm, 2mm and 3mm For non-contact treatment:Spider VeinNail fungusVascular Dermatosis

LEARN MORE
Surgery Handpiece

Surgery Handpiece

It can match with the mainstream laser machine all over the world. Any surgical laser machine of pluggable fiber, SMA905 or FC connector are all compatible

LEARN MORE
ENT Handpiece

ENT Handpiece

Include 7 pieces cannula suitable for 200um-600um fiber Offering you a wide choice of materials, designs and sizes to perform any ENT procedure with precision and speed.

LEARN MORE
Lipo Handpiece Pro

Lipo Handpiece Pro

It is possible to use different cannulas depending on the area, which is going to be treated. Include 5 pieces cannula Suitable for 600μm fiber Length: 100mm,150mm,200mm,250mm,300mm

LEARN MORE
Lipolysis Handpiece

Lipolysis Handpiece

Include 5 pieces cannula Suitable for 200-600μm fiber It is possible to use different cannulas depending on the area, which is going to be treated. Length: 100mm,150mm,200mm,250mm,300mm

LEARN MORE
Gynecology Handpiece

Gynecology Handpiece

Fiber diameter: 600um Length:219.5mm Outside diameter: 35mm Inside diameter: 24mm Standard SMA905 connector Suitable for vaginal rejuvenation, Colposcopy Applications, HPV lesions, Cysts of the mucosa, Cervical intraepithelial neoplasia, etc.

LEARN MORE

Medical Fibers and Tips

Side Fiber

Side Fiber

Core[um]: 600 Fiber tip: oblique 8 degrees High power F-SMA905 connector Extension sleeve available in various colors Self-design on request

LEARN MORE
Conical Fiber

Conical Fiber

Hemorrhoid Fiber Probe 600μm NA=0.22 Distal end OD: 1800μm CE approved Sterile Standard SMA905 connector Effective laser emission into the hemorrhoidal node Special conical design for cutting and coagulation Maximized stability and durability

LEARN MORE
Holmium Fiber

Holmium Fiber

Standard SMA/FC connector Core[um]: 272; 365; 550 Flat/air gap connector available Extension sleeve available in various colors Standard length 3m, NA=0.22/0.37 Specifically for use with most holmium and Nd:YAG laser systems on the market. Designed for durability,flexibility and versatility in urological procedures.

LEARN MORE
Radial Fiber

Radial Fiber

Connector: standard SMA 905 Fiber diameter: 400/730um, 600/750um Glass OD: 1.2mm Glass length: 10mm Transmittance: >90% ETO sterilization, double packing 360¡ã radiation and optimized handling, standard for endovenous laser therap

LEARN MORE
Laserlift Fiber tips

Laserlift Fiber tips

Diameter: 200μm, 300μm,400μm, 600μm, 800μm, 1000μm

LEARN MORE
Bare fiber

Bare fiber

Bare Fibers(200μm) Length: 3m;Bare Fibers(300μm) Length: 3m;Bare Fibers(400μm) Length: 3m

LEARN MORE

Accessories

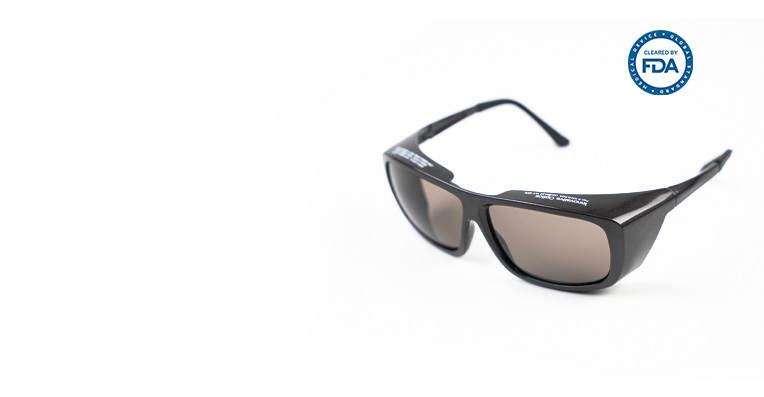

Professional Laser Safety Glasses - Made in Germany (Recommend)

Professional Laser Safety Glasses - Made in Germany (Recommend)

Essential protective gear for laser operations, designed to absorb or reflect specific laser wavelengths effectively, safeguarding the eyes from harm. Compliant with the European Committee for Standardization (CEN) EN 207 standard.

LEARN MORE
Multilingual instruction manual

Multilingual instruction manual

A multilingual instruction manual can enhance user experience, meet regulatory requirements, boost brand image, and improve customer support efficiency.

LEARN MORE
Medical-grade Adapter

Medical-grade Adapter

Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.

LEARN MORE
Packing Box

Packing Box

Packing Box is specifically designed to provide secure and protective storage for diode lasers.

LEARN MORE
Bare fiber holder

Bare fiber holder

Facilitating the placement and stretching of optical fibers during the laser operation process.

LEARN MORE
Laser Safety goggles

Laser Safety goggles

Essential protective equipment for laser operations, capable of effectively absorbing or reflecting specific wavelengths of laser light to prevent eye injury.

LEARN MORE
Medical-grade Plug

Medical-grade Plug

Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.

LEARN MORE
Bluetooth Medical-grade Foot Pedal (Optional)

Bluetooth Medical-grade Foot Pedal (Optional)

Foot pedal, tested for 500,000 cycles, with accompanying test reports, supporting both wired and wireless Bluetooth connectivity.(Optional)

LEARN MORE
Medical-grade Foot Pedal (Optional)

Medical-grade Foot Pedal (Optional)

Waterproof foot pedal, passing the waterproof test, with a 500,000 times usage test report.(Optional)

LEARN MORE
