Hardware Performance

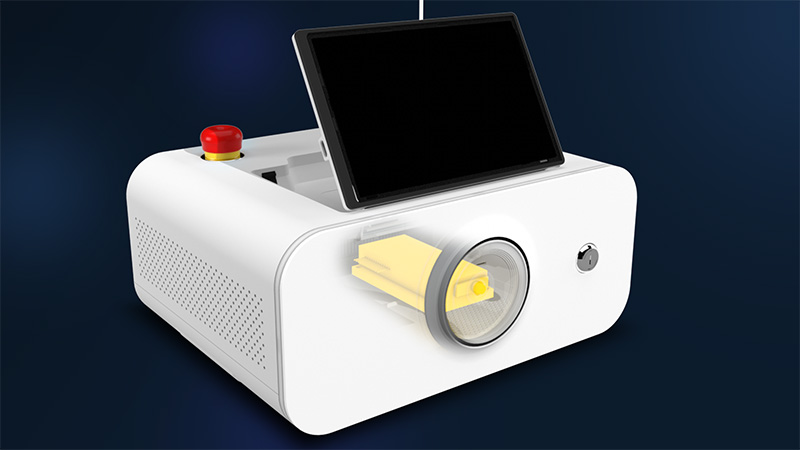

High-Quality Casing: The M2 features a high-class ABS+PC unibody durable shell, smooth and aesthetically pleasing, adding a touch of art to the operating room.
The Multi-talented Warrior of PIOON
The strongest parameter compatibility (Wavelength & Power)
The world’s best MDL* display. Brillian in 7-inch Retina HD.
The world's first to integrate an intelligent OS to MDL*
OEM customization support
The Multi-talented Warrior of PIOON
Multi-Wavelength Selection
The M2 surgical laser device offers a variety of wavelength options (including but not limited to 808nm, 980nm, 1064nm, and 1470nm), suitable for different clinical applications and surgical needs.
High-Power Output
The device boasts high-power output capabilities, ensuring sufficient energy for efficient cutting, coagulation, and vaporization during surgeries, thereby enhancing surgical efficiency.
Dual-Wavelength Simultaneous Output
The M2 supports dual-wavelength simultaneous output, utilizing the combined effects of different wavelengths to optimize surgical outcomes, such as reducing bleeding, improving precision, and promoting postoperative healing.
Wide Clinical Applications
With its multi-wavelength and high-power characteristics, the M2 is suitable for a wide range of clinical applications, including but not limited to dermatology, ENT, , gynecology, proctology, general surgery, and cosmetic surgery.
Safety Assurance
The M2 is equipped with multiple safety protection mechanisms, including but not limited to overheat protection, overcurrent protection, and automatic fault detection, ensuring safe operation during surgeries.
Professional Support Services
Comprehensive pre-sales, in-sales, and after-sales support are provided, including equipment training, maintenance, and technical support, ensuring worry-free use for customers.
Hardware Performance
Innovative Design
The integration of the fiber SMA-905 interface and laser indicator into the "Pioon-Eye" design makes it a visual delight from afar.

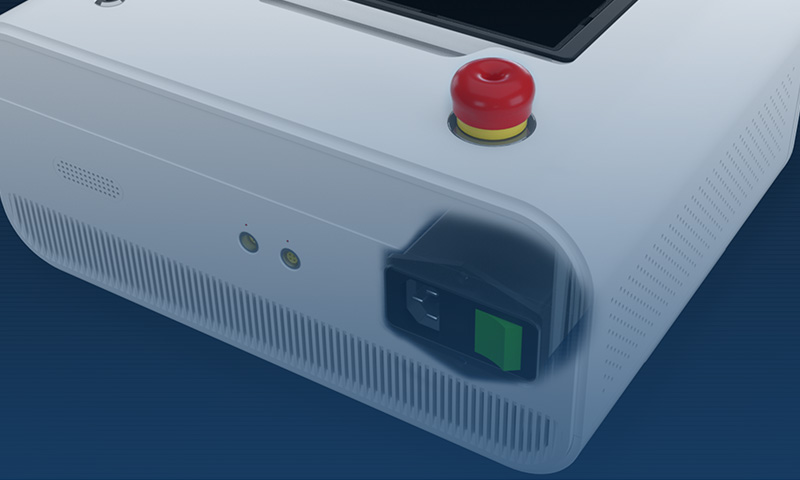

Built-In Adapter
The M2 includes a built-in adapter supporting global voltage, ensuring stable operation in different regions.
Powerful CPU
Equipped with the most powerful CPU to date, the M2 supports up to three-wavelength output simultaneously. The standard configuration is 980nm 30W and 1470nm 15W, with further customization options available. For detailed customization of power and wavelength, please contact us.
Wavelength Combinations——Let M2 Do It All
To explore more of M2's potential, please contact us.
| No | Wavelength | Power |
|---|---|---|
| 1 | 450nm | 10W |
| 2 | 520nm | 10W |
| 3 | 808nm | 30W |
| 4 | 980nm+1470nm | 60W+30W |
| 5 | 1064nm | 10W |
| 6 | 1210nm+1470nm | 10W+10W |
| 7 | 1470nm | 20W |
| 8 | 1940nm | 10W |
Software Intelligence
SmartOS 2.0 System
The M2 is equipped with PIOON-developed SmartOS 2.0, based on the operational logic of modern smartphones. It features an elegant and user-friendly interface.
Seamless Operation Experience
From preset configurations to expert customization, finger-touch activation to personalized settings, SmartOS 2.0 helps users achieve a seamless operational experience.
Precise Control
The device features precise energy control and adjustment functions, ensuring the most suitable energy output for various surgical procedures, thereby guaranteeing safety and effectiveness.
User-Friendly Interface
The UI design is simple and intuitive, allowing for quick parameter setting and adjustment, helping users get started quickly and improving work efficiency.
Technical Specification
| Screen size: | 7 inches |
| Screen resolution: | Retina level |
| Dimensions: | 290mm x 250mm x 130mm |
| Shell color: | Moon White |
| Storage: | 32GB(≈ 1,000,000 Protcols+ 500 HD Treatment Tutorials) |
| Fiber connector: | SMA905 |
| Operating system: | SmartOS 2.0 |
The medical laser device complies with the following standards
| IEC 60601-1:2020 | ISO 14971:2019 |
| IEC 60601-1-2:2020 | ISO 24971:2020 |
| IEC 60601-2-22:2019 | ISO 10993-1:2018 |
| IEC 60825-1:2014 | ISO 15223-1:2021 |
| IEC 62304:2015 | ISO 14971:2019 |
| IEC 62366-1:2020 |
Medical-Grade Instruments and Accessories
Handpieces
Surgical Zoom Handpiece
Minimum spot Variable-zoom High efficiency transmission For contactless applications:Spider Vein/Nail fungus/Vascular Dermatosis
LEARN MORE
Focusing Handpiece
Fiber 300um, 400um SMA905 connector Magnification confocal: 1:1 Spot diameter: 1mm, 2mm and 3mm For non-contact treatment:Spider VeinNail fungusVascular Dermatosis
LEARN MORE
Surgery Handpiece
It can match with the mainstream laser machine all over the world. Any surgical laser machine of pluggable fiber, SMA905 or FC connector are all compatible
LEARN MORE
ENT Handpiece
Include 7 pieces cannula suitable for 200um-600um fiber Offering you a wide choice of materials, designs and sizes to perform any ENT procedure with precision and speed.
LEARN MORE
Lipo Handpiece Pro
It is possible to use different cannulas depending on the area, which is going to be treated. Include 5 pieces cannula Suitable for 600μm fiber Length: 100mm,150mm,200mm,250mm,300mm
LEARN MORE
Lipolysis Handpiece
Include 5 pieces cannula Suitable for 200-600μm fiber It is possible to use different cannulas depending on the area, which is going to be treated. Length: 100mm,150mm,200mm,250mm,300mm
LEARN MORE
Gynecology Handpiece
Fiber diameter: 600um Length:219.5mm Outside diameter: 35mm Inside diameter: 24mm Standard SMA905 connector Suitable for vaginal rejuvenation, Colposcopy Applications, HPV lesions, Cysts of the mucosa, Cervical intraepithelial neoplasia, etc.
LEARN MOREMedical Fibers and Tips
Side Fiber
Core[um]: 600 Fiber tip: oblique 8 degrees High power F-SMA905 connector Extension sleeve available in various colors Self-design on request
LEARN MORE
Conical Fiber
Hemorrhoid Fiber Probe 600μm NA=0.22 Distal end OD: 1800μm CE approved Sterile Standard SMA905 connector Effective laser emission into the hemorrhoidal node Special conical design for cutting and coagulation Maximized stability and durability
LEARN MORE
Holmium Fiber
Standard SMA/FC connector Core[um]: 272; 365; 550 Flat/air gap connector available Extension sleeve available in various colors Standard length 3m, NA=0.22/0.37 Specifically for use with most holmium and Nd:YAG laser systems on the market. Designed for durability,flexibility and versatility in urological procedures.
LEARN MORE
Radial Fiber
Connector: standard SMA 905 Fiber diameter: 400/730um, 600/750um Glass OD: 1.2mm Glass length: 10mm Transmittance: >90% ETO sterilization, double packing 360¡ã radiation and optimized handling, standard for endovenous laser therap
LEARN MORE
Bare fiber
Bare Fibers(200μm) Length: 3m;Bare Fibers(300μm) Length: 3m;Bare Fibers(400μm) Length: 3m
LEARN MOREAccessories
Professional Laser Safety Glasses - Made in Germany (Recommend)
Essential protective gear for laser operations, designed to absorb or reflect specific laser wavelengths effectively, safeguarding the eyes from harm. Compliant with the European Committee for Standardization (CEN) EN 207 standard.
LEARN MORE
Multilingual instruction manual
A multilingual instruction manual can enhance user experience, meet regulatory requirements, boost brand image, and improve customer support efficiency.
LEARN MORE
Medical-grade Adapter
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Packing Box
Packing Box is specifically designed to provide secure and protective storage for diode lasers.
LEARN MORE
Bare fiber holder
Facilitating the placement and stretching of optical fibers during the laser operation process.
LEARN MORE
Laser Safety goggles
Essential protective equipment for laser operations, capable of effectively absorbing or reflecting specific wavelengths of laser light to prevent eye injury.
LEARN MORE
Medical-grade Plug
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Bluetooth Medical-grade Foot Pedal (Optional)
Foot pedal, tested for 500,000 cycles, with accompanying test reports, supporting both wired and wireless Bluetooth connectivity.(Optional)
LEARN MORE
Medical-grade Foot Pedal (Optional)
Waterproof foot pedal, passing the waterproof test, with a 500,000 times usage test report.（Optional）
LEARN MORE
