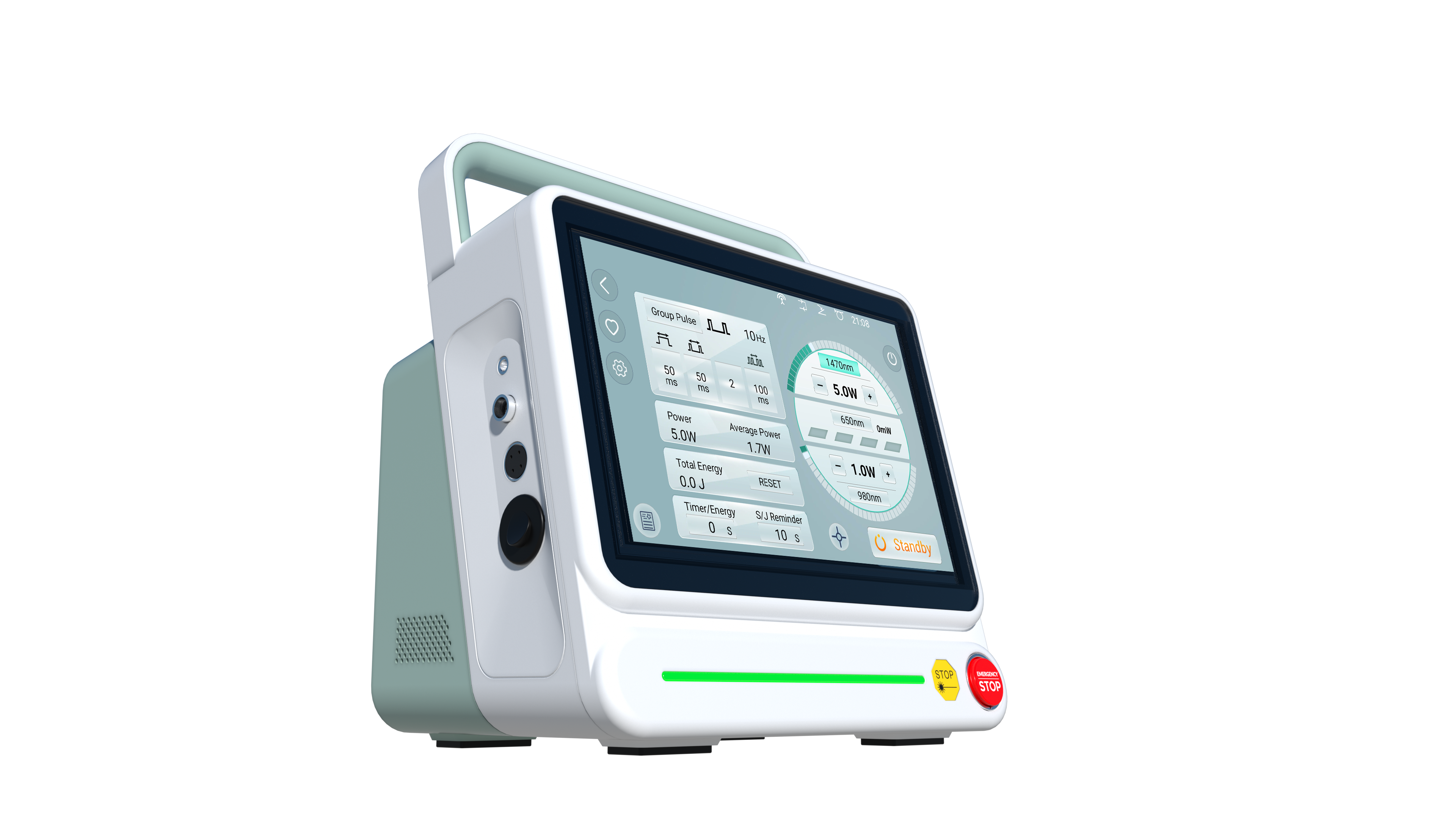

Multi-Specialty Performance, Designed for Daily Surgical Practice
Featuring 980nm + 1470nm mixed emission in one platform, S1Pro Plus surgery diode system is designed to balance efficient tissue ablation with coagulation support
across a broader range of surgical applications.
Its compact and lightweight design makes daily use, movement, and clinical integration easier, while stable output helps support more consistent performance
during treatment.
With a more affordable and cost-effective setup, S1Pro Plus offers clinics a more accessible way to integrate laser surgery into daily practice.
Expanded Triple-Wavelength Surgical Diode Laser
The upgraded S1 Pro Plus surgical diode laser integrates 980nm, 1470nm, and 650nm wavelengths into a single surgical platform. Each wavelength serves a distinct clinical purpose and can be selected according to different treatment objectives, while 980nm and 1470nm also support mixed-emission mode for enhanced surgical performance.
Flexible Output Modes
Different output modes are designed to support different stages of treatment, allowing clinicians to select the most appropriate laser configuration based on procedural goals.
| Output Mode | Primary Clinical Advantage |
|---|---|
| 980nm | Balanced cutting and coagulation |
| 1470nm | High water absorption for precise tissue interaction |
| 980nm +1470nm Mixed | Enhanced cutting efficiency with reliable hemostasis |
| 650nm | Photobiomodulation to support tissue recovery |
Supporting the Complete Treatment Workflow
By combining independent wavelength selection with mixed-emission capability, the S1 Pro Plus gives clinicians greater flexibility to adapt laser output to different procedures and treatment stages.
| Treatment Stage | Recommended Mode | Clinical Benefit |
|---|---|---|
| Tissue Ablation | 1470nm or 980nm+1470nm Mixed | Controlled cutting with reduced thermal damage |
| Hemostasis | 980nm or 980nm+1470nm Mixed | Effective bleeding control |
| Postoperative Recovery | 650nm | Photobiomodulation support |
Expand Clinical Services Across 7 Specialties
One surgical diode laser system designed to support a broad range of minimally invasive procedures with dedicated treatment protocols.
Over 100 clinically validated protocols fast-track your practice expansion. Each protocol is tested, optimized, and ready to use, enabling rapid adoption of new treatments with clinical confidence and proven safety.
Designed for Everyday Clinical Efficiency
Thoughtfully engineered hardware that simplifies workflow, improves mobility, and supports reliable performance.
8-inch HD
Large HD display for intuitive operation and clear treatment visualization.
Portable Design
Compact and lightweight for effortless movement between treatment rooms.
Quick-start
Start treatments quickly with an intuitive touchscreen and clinical presets.
Smart chip
Optimized intelligent system control for stable performance and reliable laser output.
-
8-inch HD
Large HD display for intuitive operation and clear treatment visualization.
-
Portable Design
Compact and lightweight for effortless movement between treatment rooms.
-
Quick-start
Start treatments quickly with an intuitive touchscreen and clinical presets.
-
Smart chip
Optimized intelligent system control for stable performance and reliable laser output.
Smarter Software for More Efficient Treatments

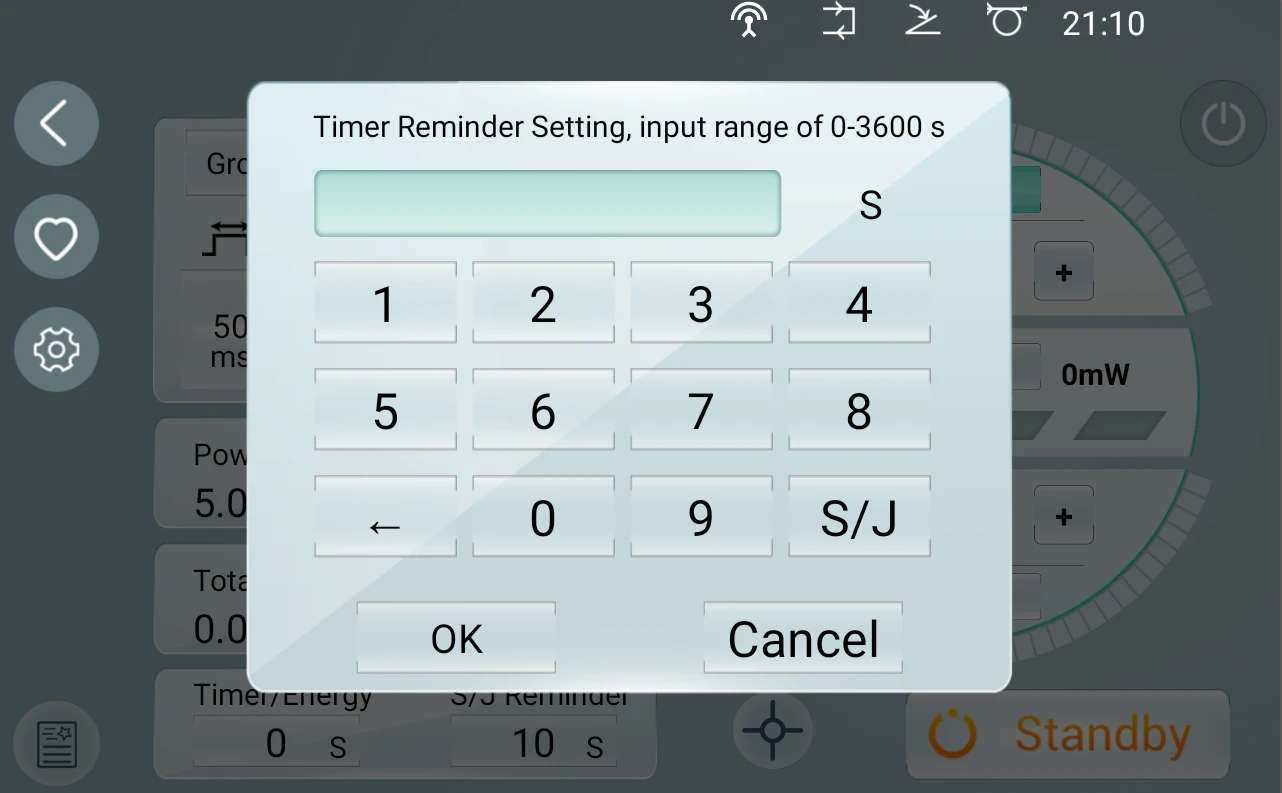

Time/Energy Reminders
Real-time energy monitoring with intelligent stage-based reminders helps clinicians track delivered energy more accurately, supporting consistent treatment protocols and greater procedural confidence.

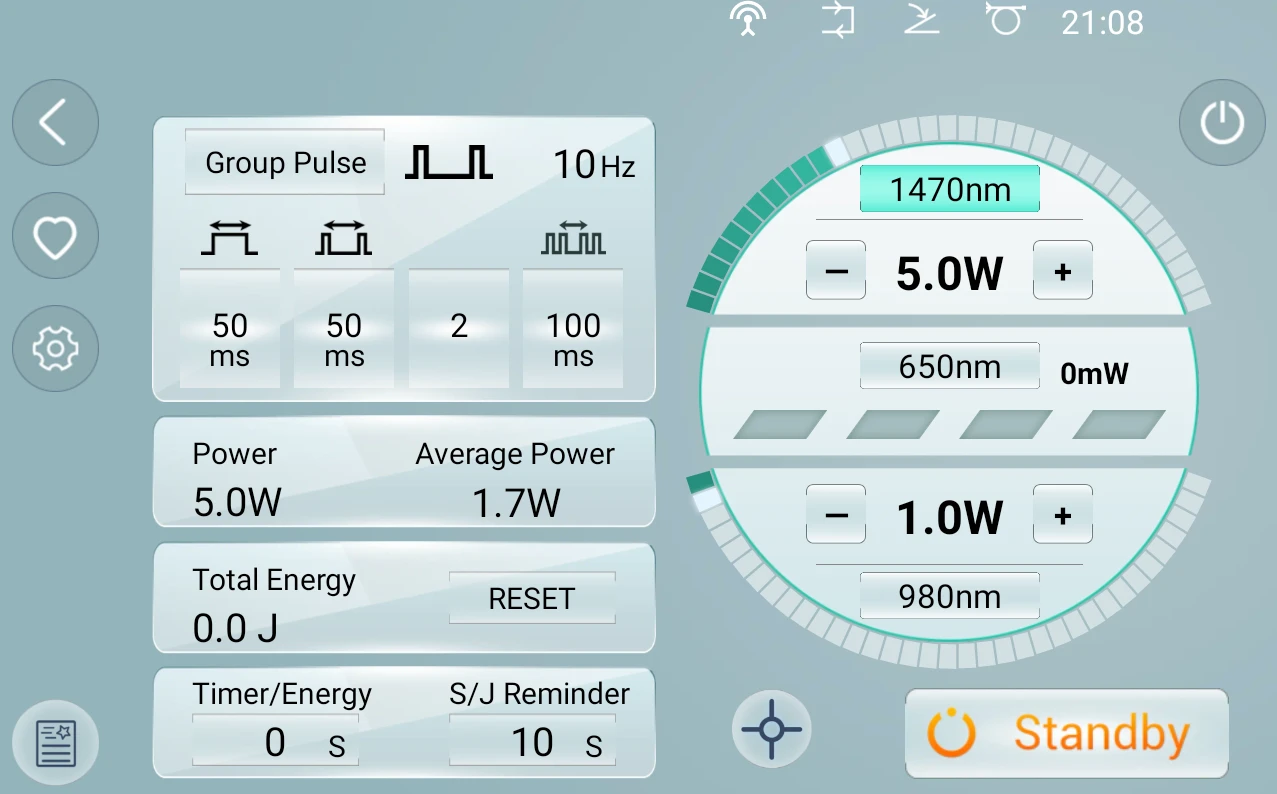

Group-Pulse Mode
Optimized pulse sequencing helps improve tissue interaction while reducing unnecessary thermal accumulation, supporting cleaner surgical performance and greater procedural control.

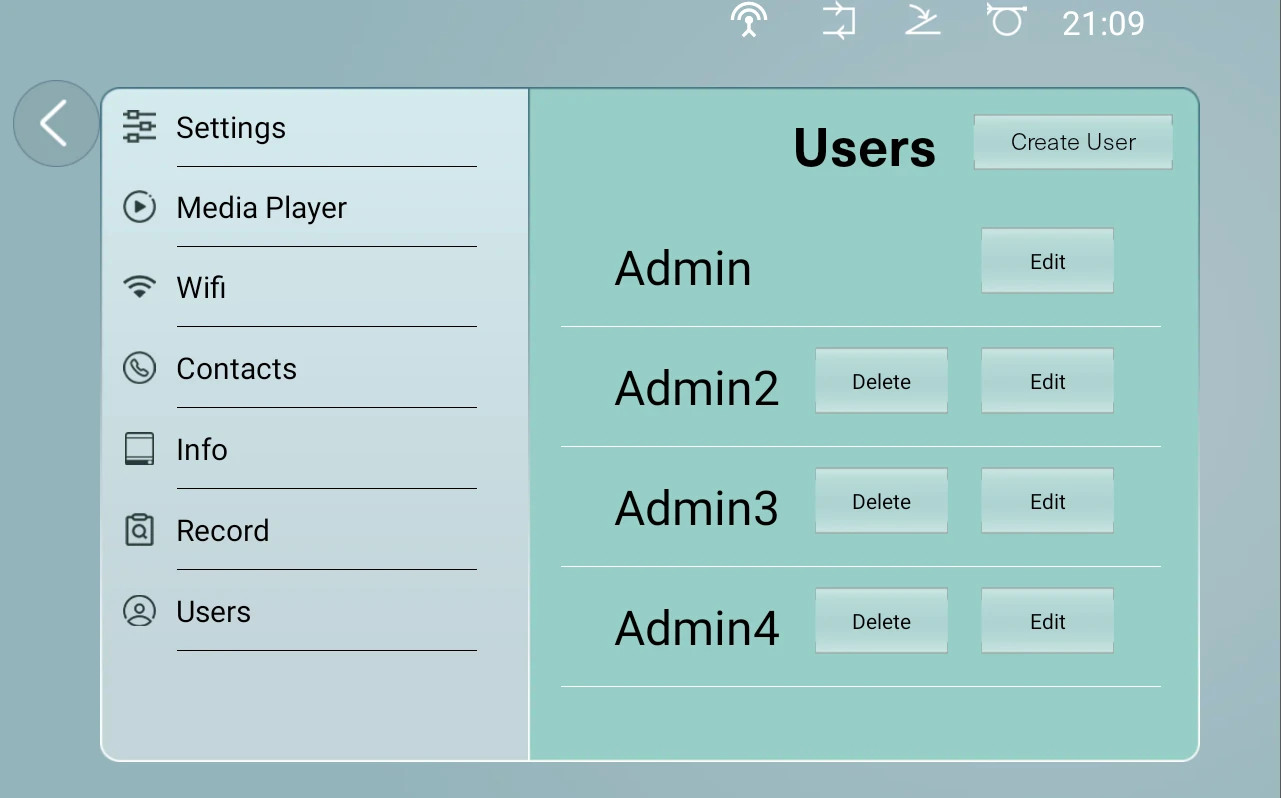

Customizable Multi-User OS
Individual user profiles allow clinicians to save personalized treatment settings while helping hospitals standardize workflows, simplify account management, and improve operational efficiency.
Make Stability Visible
When choosing a medical laser, don't just focus on weight, appearance, or embellished specifications, but rather on its long-term stability.
Ensure Stability in 3 Aspects
-
Built-in TEC and double fan cooling system
-
External air inlet and outlet
-
Longest warranty service policy in the industry
CUSTOMIZED PRICING IS THE MOST REASONABLE
Let's explore and shape a more promising pricing strategy together, based on the pulse of the market.
Mastery of the supply chain system
We choose the best quality materials to make the best products. Supply chain stability to meet your needs no matter what quantity.
Comprehensive understanding of the laser market
Pioneering innovation for more than twenty years, we illuminate the path to cutting-edge advancements in medical laser solutions.
We are the true original manufacturer
We have comprehensive production control and cutting-edge R&D capabilities, long-term effective after-sales service. We also offer OEM customization services.
Technical Specification
| Wavelength | 1470nm+980nm+650nm |
| Max Power | 5W+20W+200mW |
| Aiming Beam | 650nm < 2mW |
| Display/Control | 8-inch HD vivid Touch-Screen |
| Operating Modes | Continuous Wave(CW)/Pulsed/Single Pulse |
| Pulse width | 10-25000ms |
| Cooling System | Air Cooling+TEC |
| Weight | 3.5KG |
| Dimensions | 208mm*136mm*208mm |
The medical laser device complies with the following standards
| IEC 60601-1:2020 | ISO 14971:2019 |
| IEC 60601-1-2:2020 | ISO 24971:2020 |
| IEC 60601-2-22:2019 | ISO 10993-1:2018 |
| IEC 60825-1:2014 | ISO 15223-1:2021 |
| IEC 62304:2015 | ISO 14971:2019 |
| IEC 62366-1:2020 |
Medical-Grade Instruments and Accessories
Handpieces
Proctology Handpiece
Designed for proctology laser treatment. Such as hemorrhoids, anal fissures, and fistulas with precision. Matched with conical fiber.
LEARN MORE
Surgical Zoom Handpiece
Minimum spot Variable-zoom High efficiency transmission For contactless applications:Spider Vein/Nail fungus/Vascular Dermatosis
LEARN MORE
Focusing Handpiece
Fiber 300um, 400um SMA905 connector Magnification confocal: 1:1 Spot diameter: 1mm, 2mm and 3mm For non-contact treatment:Spider VeinNail fungusVascular Dermatosis
LEARN MORE
Surgery Handpiece
It can match with the mainstream laser machine all over the world. Any surgical laser machine of pluggable fiber, SMA905 or FC connector are all compatible
LEARN MORE
ENT Handpiece
Enhance surgical precision with PIOON’s ENT Laser Handpiece. Featuring a 7-piece cannula set (10cm-20cm), it supports 200μm-600μm fibers for minimally invasive otology, rhinology, and pharyngeal procedures. Fully autoclavable and ergonomic.
LEARN MORE
Lipo Handpiece Pro
It is possible to use different cannulas depending on the area, which is going to be treated. Include 5 pieces cannula Suitable for 600μm fiber Length: 100mm,150mm,200mm,250mm,300mm
LEARN MORE
Lipolysis Handpiece
Include 5 pieces cannula Suitable for 200-600μm fiber It is possible to use different cannulas depending on the area, which is going to be treated. Length: 100mm,150mm,200mm,250mm,300mm
LEARN MORE
Gynecology Handpiece
Fiber diameter: 600um Length:219.5mm Outside diameter: 35mm Inside diameter: 24mm Standard SMA905 connector Suitable for vaginal rejuvenation, Colposcopy Applications, HPV lesions, Cysts of the mucosa, Cervical intraepithelial neoplasia, etc.
LEARN MOREMedical Fibers and Tips
Radial Emission Fiber - CE Certified
Reliable 360° radial fiber for minimally invasive vein treatment. Medical-grade silica, CE-certified, and compatible with professional vascular laser systems.
LEARN MORE
Polyimide-coated Fiber
High-performance Polyimide-coated Optical Fiber for medical diode lasers. Features 300°C heat resistance for Proctology, Vascular (EVLT), Dentistry, ENT, and Aesthetics. This polyimide optical fiber ensures reliable energy transmission and mechanical strength for precise clinical outcomes.
LEARN MORE
Conical Fiber
Hemorrhoid Fiber Probe 600μm NA=0.22 Distal end OD: 1800μm CE approved Sterile Standard SMA905 connector Effective laser emission into the hemorrhoidal node Special conical design for cutting and coagulation Maximized stability and durability
LEARN MORE
Radial Fiber
Engineered for controlled endovenous laser ablation with reduced perforation risk, lower postoperative pain, and consistent vein closure.
LEARN MORE
Bare Fiber
Bare Fibers(200μm) Length: 3m;Bare Fibers(300μm) Length: 3m;Bare Fibers(400μm) Length: 3m
LEARN MOREAccessories
Surgical Clear-View Laser Protection Goggles
Grey surgical laser safety goggles engineered for 980–2700 nm infrared applications, offering high-clarity visibility, polycarbonate protection, and FDA & ANSI Z87.1 certification.
LEARN MORE
Multilingual Instruction Manual
A multilingual instruction manual can enhance user experience, meet regulatory requirements, boost brand image, and improve customer support efficiency.
LEARN MORE
Medical-grade Adapter
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Packing Box
Packing Box is specifically designed to provide secure and protective storage for diode lasers.
LEARN MORE
Bare Fiber Holder
Facilitating the placement and stretching of optical fibers during the laser operation process.
LEARN MORE
Laser Protective Goggles
Essential protective equipment for laser operations, capable of effectively absorbing or reflecting specific wavelengths of laser light to prevent eye injury.
LEARN MORE
Medical-grade Plug
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Bluetooth Medical-grade Foot Pedal (Optional)
Foot pedal, tested for 500,000 cycles, with accompanying test reports, supporting both wired and wireless Bluetooth connectivity.(Optional)
LEARN MORE
Medical-grade Foot Pedal (Optional)
Waterproof foot pedal, passing the waterproof test, with a 500,000 times usage test report.（Optional）
LEARN MOREFrequently Asked Questions: S1Pro Plus Surgical Diode Laser
1. What is the S1 Pro Plus surgical diode laser used for?
The S1 Pro Plus is a multi-wavelength surgical diode laser designed for minimally invasive procedures across multiple medical specialties. It supports applications including EVLT, proctology, ENT, gynecology, PLDD, podiatry, and aesthetic surgery, helping clinics expand treatment capabilities with a single platform.
2. What are the advantages of combining 980nm, 1470nm, and 650nm wavelengths?
Each wavelength provides different tissue interactions and clinical benefits.
- 980nm supports efficient coagulation and hemostasis.
- 1470nm offers high water absorption for precise tissue ablation.
- 650nm supports photobiomodulation (PBM) for postoperative tissue recovery and low-level laser therapy.
Together, they provide greater treatment flexibility across different surgical procedures.
3. Can each wavelength be used independently?
Yes. The S1 Pro Plus supports independent output of 980nm, 1470nm, and 650nm wavelengths. In addition, 980nm and 1470nm can also operate in mixed-emission mode, allowing clinicians to optimize tissue interaction according to different surgical requirements.
4. Why use mixed emission of 980nm and 1470nm?
Mixed emission combines the advantages of both wavelengths in a single surgical workflow.
- 980nm helps improve coagulation performance.
- 1470nm enhances precise tissue interaction through higher water absorption.
The combination provides balanced cutting performance and reliable hemostasis for a wide range of soft tissue procedures.
5. What is the purpose of the 650nm wavelength?
Unlike surgical wavelengths, 650nm is primarily used for photobiomodulation (PBM). It can be used to support tissue repair, reduce postoperative discomfort, and promote healing after laser procedures, making it a valuable addition to the overall treatment workflow.
6. Why is a multi-wavelength surgical diode laser a cost-effective choice for clinics?
A multi-wavelength platform offers greater clinical flexibility by supporting different tissue interactions within one device. Instead of purchasing separate systems for different specialties, clinics can perform a broader range of procedures while improving equipment utilization and simplifying workflow management.
