The S3 Plus is Pioon's premium three-wavelength dental laser, designed for clinicians who expect higher performance from everyday laser procedures. Combining Super Pulsed technology with enhanced output across all three wavelengths, it delivers greater precision, improved efficiency, and a more refined treatment experience for both dentists and patients.
Enhanced Triple-Wavelength Dental Laser System

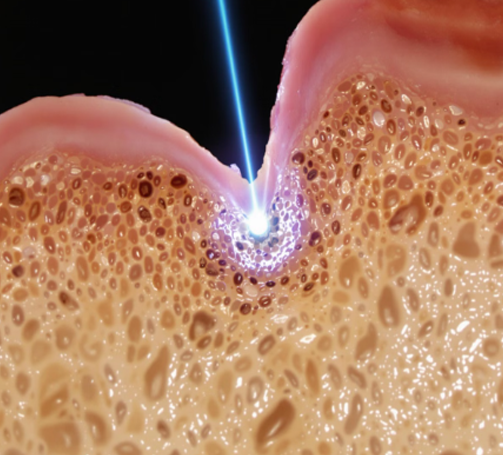

The upgraded 450 nm wavelength—now increased from 3 W to 7 W W—takes advantage of its strong absorption in melanin and hemoglobin to heat tissue quickly and achieve efficient vaporization. This boost in power greatly improves cutting efficiency. At the same time, its lower absorption in water compared with infrared diode lasers helps minimize unwanted thermal damage.
Wound healing and bone regeneration therapy are more effective with lower power for a longer period of time. However, if for musculoskeletal conditions and pain therapy, the higher power will achieve more efficient effects. Max 500mW output power of 650nmbrings a whole new level of oral physiotherapy.
The 980nm infrared wavelength offers deep tissue penetration, making it ideal for
periodontal therapy, root canal disinfection, peri-implantitis treatment, and soft-tissue
surgery. Its effective interaction with water and hemoglobin allows precise energy
delivery with reliable clinical outcomes.
With an upgraded 12W stable output, S3 Plus provides significantly
greater cutting
capability and treatment efficiency than conventional low-power diode lasers. When paired
with Super-Pulsed technology, it achieves concentrated energy delivery, faster procedures,
reduced carbonization, and minimal collateral thermal damage—giving clinicians more
confidence across both routine and advanced soft-tissue applications.
980nm + 650nm Dual Wavelength Simultaneous Output
Integrated Therapeutic Laser Solution

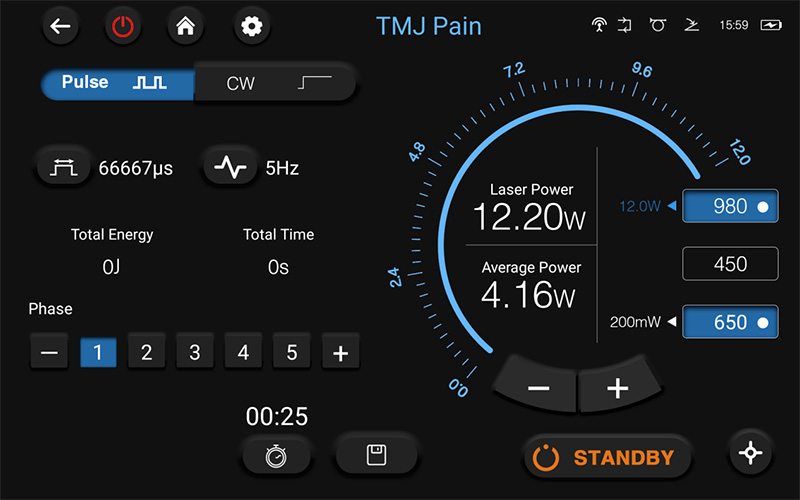

Pioon S3 Plus dental diode laser supports simultaneous dual-wavelength output of 980nm and 650nm, combining the deep penetration advantage of high-power 980nm laser with the photobiomodulation effect of 650nm red laser.
This mixed mode is specially optimized for dental physiotherapy, soft tissue rehabilitation, pain relief, anti-inflammation, and mucosal healing. The two wavelengths work synergistically to improve blood circulation, accelerate tissue repair, relieve edema and pain, and enhance postoperative recovery — providing efficient, non-invasive adjuvant therapy for both acute and chronic dental conditions.[1]

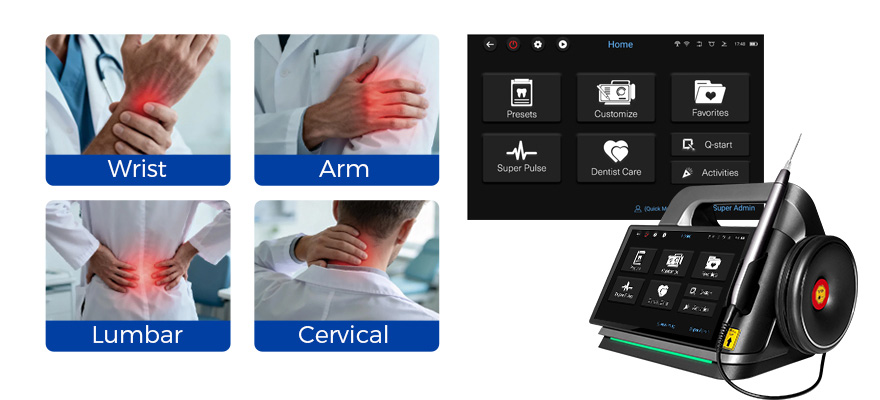

Dentist Care Mode
Care
for Your Patients. Care for Yourself.
Building on the powerful 650nm therapeutic function, we further developed the Dentist Care Mode exclusively for long-working dental clinicians.
This mode leverages high-energy 980nm laser (or 980nm + 650nm dual-wavelength simultaneous output) to deliver deep tissue penetration, relieve muscle fatigue, improve local blood circulation, and reduce chronic soreness and inflammation.
S3 Plus Dental Laser Color Edition - Expanded LLLT - 5 Additional Treatment Protocols
Building on the proven 650nm LLLT for patient treatment, the S3 Plus Rose Quartz Edition now offers even more options for your clinic. This special edition adds 5 new intelligent preset treatment protocols to the existing LLLT functions, delivering greater flexibility, precision, and convenience in low-level laser therapy.
5 New Exclusive LLLT Treatment Protocols – Available Only on the Color Edition
-
Bell's PalsyPromotes facial nerve recovery and restores muscle function.
-
TMJ PainRelieves jaw tension and reduces chronic pain.
-
TMJ TraumaAccelerates tissue repair and reduces swelling.
-
Tooth PainProvides rapid pain relief and soothes inflammation.
-
Herpes SimplexSpeeds up lesion healing and reduces outbreak duration.
More than just a new color, the Rose Quartz Pink Edition brings a soft, elegant aesthetic. It enhances your practice with expanded photobiomodulation capabilities.
This makes it ideal for anxiety-sensitive patients, female patients, and longer or sensitivity-focused procedures. You can now deliver more personalized care while strengthening your clinic’s modern, caring image.
Express Your Laser Device Style

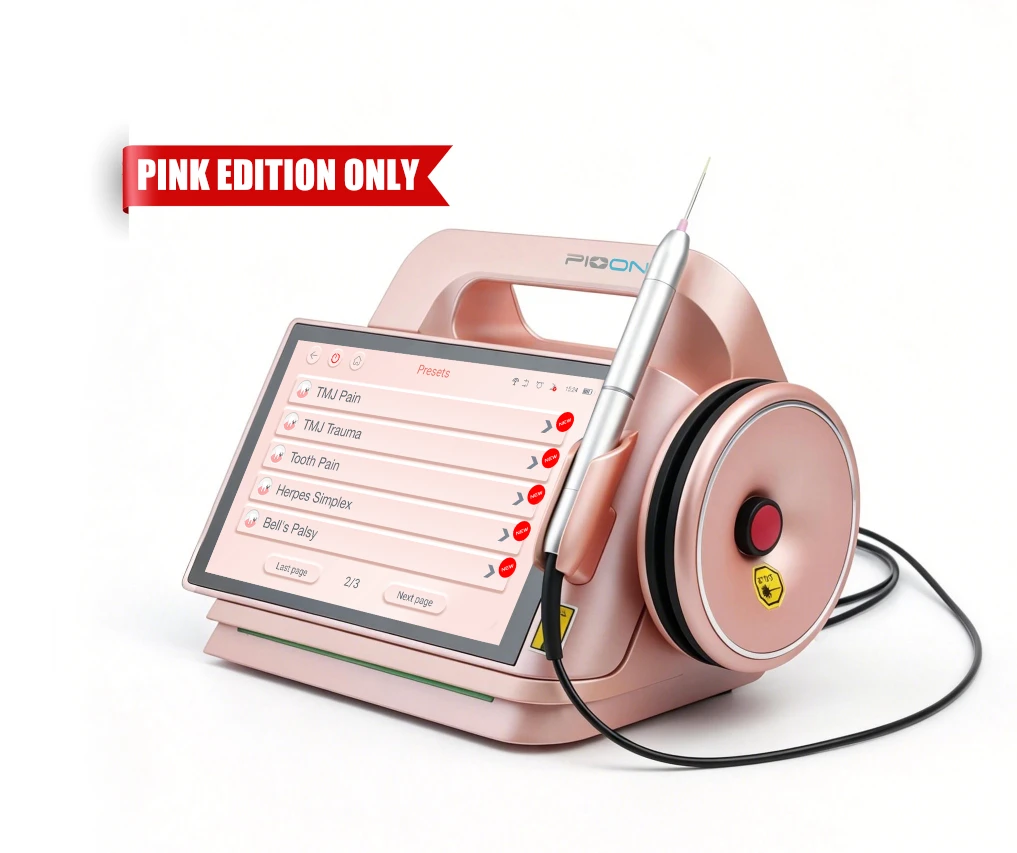

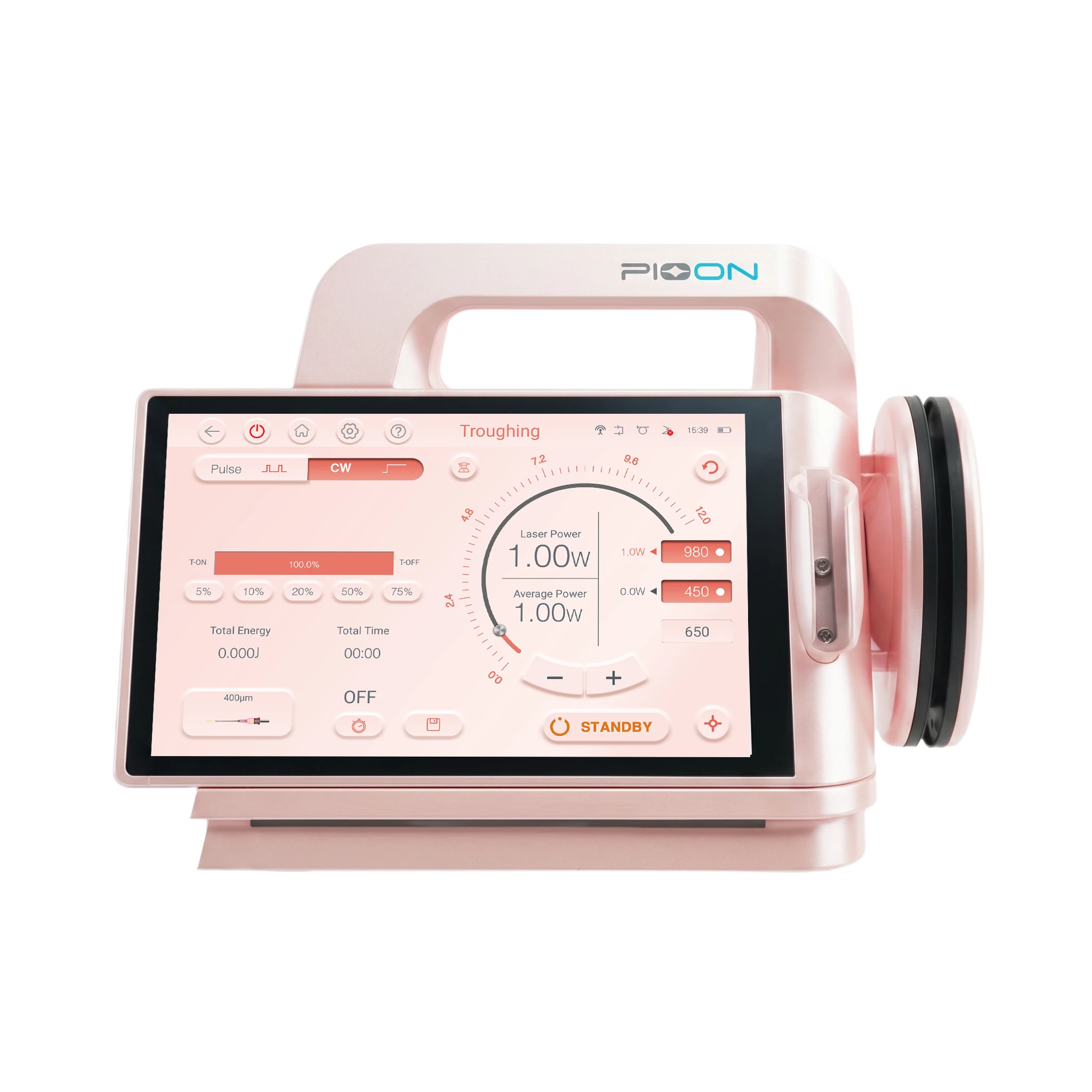

Rose Quartz Edition
Bold, vibrant, and full of personality. Designed for clinicians who want their equipment to stand out.

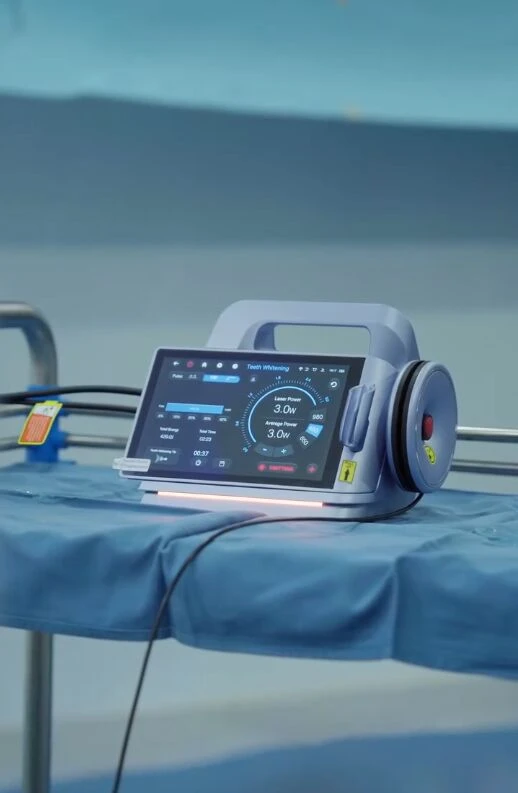

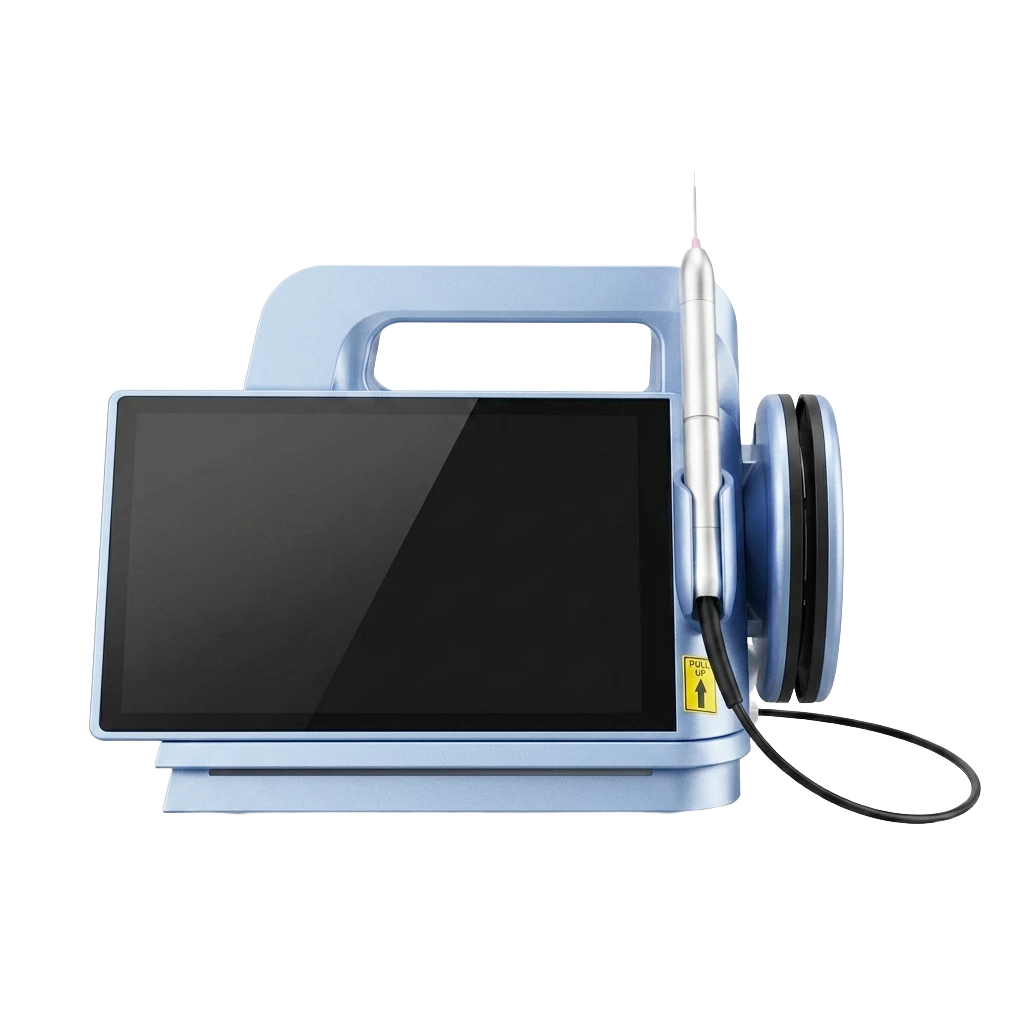

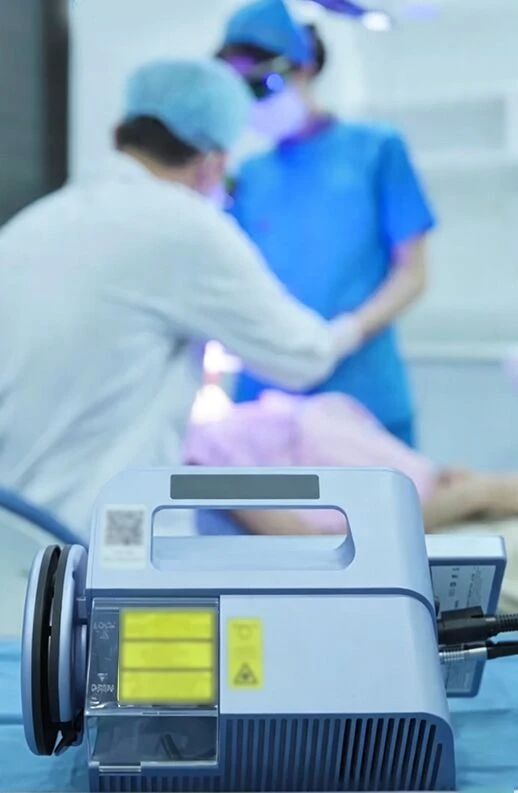

Aurora Blue Edition
Inspired by the colors of the northern lights, Aurora Blue combines a modern aesthetic with a calm, professional appearance.
Color Moments Around the World
Every Color Edition delivered is more than a dental laser—it's a moment worth celebrating. We are grateful to dentists around the world for sharing the excitement of receiving their S3 Plus Color Edition.
Why S3 Plus Delivers Greater Precision & Efficiency?

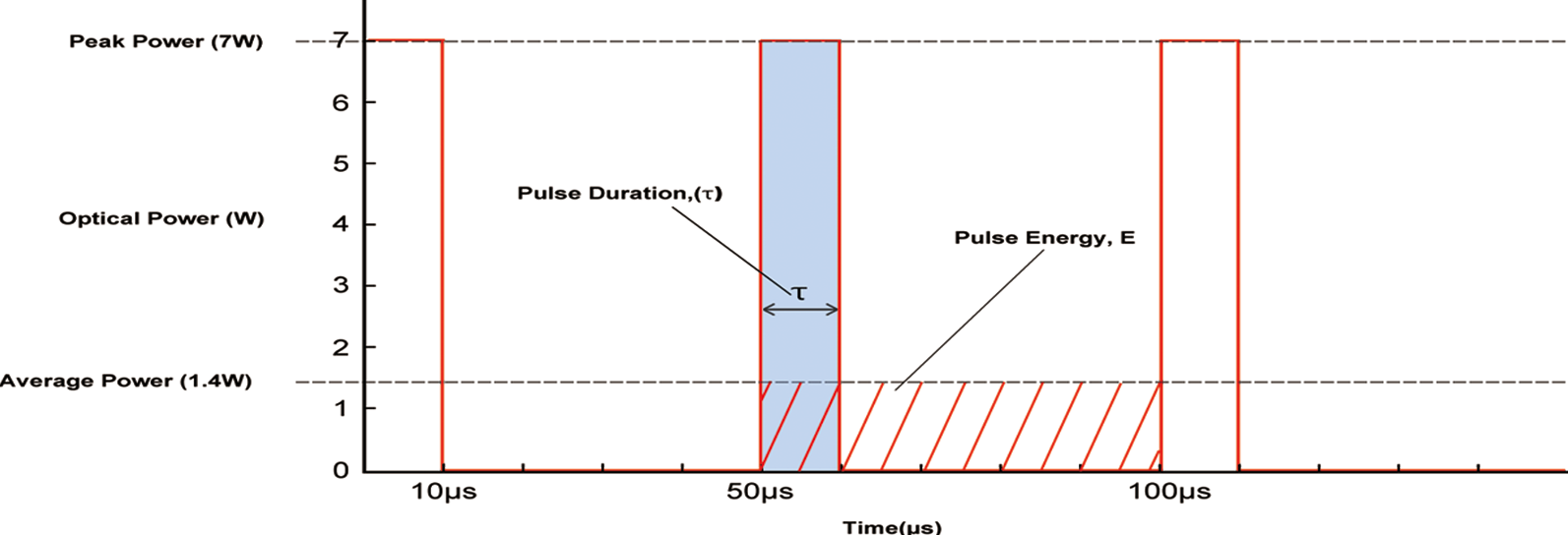

Ultra-short Pulses + High Peak Power
Super Pulse lasers release energy at peak power and short pulse widths, with long intervals between pulses. Energy is highly concentrated in instantaneous pulses, enabling greater energy density and deep penetration.
Particularly suitable for high-precision cutting and tissue repair due to peak power output and minimal thermal damage range.[2]
Experimental Comparison
A controlled soft tissue cutting experiment was conducted under identical power and tissue conditions to compare traditional laser mode and Super Pulse mode.
Super Pulse Mode
- Highly focused energy delivery
- Controlled cutting depth
- Minimal carbonization
Traditional Mode
- More gradual energy release
- Higher thermal accumulation
- Increased carbonization
Real-world testing photos captured under Laser Safety Glasses.
Note
"Traditional Mode" refers to the widely used Continuous Wave (CW) laser technology in the industry.
Super Pulse is an advanced upgrade that offers greater flexibility, maximizing tissue protection in delicate procedures while ensuring high efficiency in routine applications.
While Traditional Mode remains valuable in certain cases, Super Pulse is the superior choice for precision-driven dental treatments.
S3 Plus Superpulsed Clinical Performance
Non-Ablative Gingival Depigmentation Treatment
Treatment Outcomes
Before
Laser Treatment
Immediate Postoperative View
After Laser Irradiation
One-Week Follow-Up
A Normal Pink Color
After 2 Weeks
Technical Specification
| Wavelength and operating performance |
450nm +/-10nm / 7.0W
650nm +/-20nm / 500mW 980nm/810nm +/-10nm / 12W/8W |
| Laser operating mode | Continuous Wave (CW)/Pulsed(Super-Pulsed） |
| Pulse width | Minimum 25µs,500kHz Precise adjustment |
| Weight | ≤1.5KG NW |
| Battery Capacity | 2850mAh |
| Dimensions(L*W*H) | 225mm*150mm*150mm |
The medical laser device complies with the following standards
| IEC 60601-1:2020 | ISO 14971:2019 |
| IEC 60601-1-2:2020 | ISO 24971:2020 |
| IEC 60601-2-22:2019 | ISO 10993-1:2018 |
| IEC 60825-1:2014 | ISO 15223-1:2021 |
| IEC 62304:2015 | ISO 14971:2019 |
| IEC 62366-1:2020 | |
| IEC 80601-2-60:2019 |
Medical-Grade Instruments and Accessories
Handpieces
PBM Therapy Handpiece for Clinical Support Applications
Explore the PBM Therapy Handpiece for supportive care applications in dental care support and aesthetic medicine, helping enhance patient comfort and post-procedure care workflows.
LEARN MORE
Fixed Focus Handpiece
Fixed Focus Handpiece – Precision and versatility in one. Ideal for soft tissue dental treatments，podiatry and telangiectasia reduction.
LEARN MORE
Photobiomodulation & Oral Diagnosis Handpiece
Photobiomodulation and 405 nm fluorescence diagnostic handpieces for dental laser systems. Support tissue healing, pain relief, and biofluorescence-based detection of caries, plaque, and restorative materials for enhanced clinical visualization.
LEARN MORE
TMJ Therapy Handpiece
Primarily used for oral therapy, such as temporomandibular joint (TMJ) therapy, it also includes small-sized TMJ tips for broader and more versatile applications.
LEARN MORE
Whitening Handpiece
Used for teeth whitening, it can divide the teeth area into four quadrants, with the whitening head precisely the width of one quadrant.
LEARN MORE
Multi-functional Dental Handpiece
A direct connection fiber tip holder compatible with therapy handles, offering excellent compatibility and enabling multifunctional application
LEARN MOREMedical Fibers and Tips
Polyimide-coated Fiber
High-performance Polyimide-coated Optical Fiber for medical diode lasers. Features 300°C heat resistance for Proctology, Vascular (EVLT), Dentistry, ENT, and Aesthetics. This polyimide optical fiber ensures reliable energy transmission and mechanical strength for precise clinical outcomes.
LEARN MORE
Dental Laser Radial Tips
Experience 360° precision with Pioon Dental Radial Fiber Tips — ideal for periodontal pockets, root canal disinfection, and peri-implant care.
LEARN MORE
Dental Laser Tip 200μm
The standard version is 15mm, with additional options of 5mm, 15mm, and 25mm tips, along with a 15mm circular tip suitable for root canal disinfection.
LEARN MORE
Dental Laser Tip 300μm
The standard version is 10mm, with additional options of 5mm, 10mm, 15mm, 50mm, and 100mm tips.
LEARN MORE
Bare Fiber
Bare Fibers(200μm) Length: 3m;Bare Fibers(300μm) Length: 3m;Bare Fibers(400μm) Length: 3m
LEARN MORE
Dental Laser Tip 400μm
The standard version is 15mm, with additional options of 5mm, 15mm, and 25mm tips, along with a 15mm circular tip suitable for incision, excision, vaporization, ablation, coagulation, as well as soft-tissue curettage and sulcular debridement.
LEARN MOREAccessories
Flip-Up Loupes Laser Safety Goggles (Optional)
All-in-one laser safety goggles with flip-up 2.5X loupes! Adjustable, CE-certified, and full-spectrum protection from 200–1800nm. See clearer, work safer — perfect for dentists, surgeons, and laser pros.
LEARN MORE
Professional Laser Safety Glasses - Made in Germany (Recommend)
Essential protective gear for laser operations, designed to absorb or reflect specific laser wavelengths effectively, safeguarding the eyes from harm. Compliant with the European Committee for Standardization (CEN) EN 207 standard.
LEARN MORE
Multilingual Instruction Manual
A multilingual instruction manual can enhance user experience, meet regulatory requirements, boost brand image, and improve customer support efficiency.
LEARN MORE
Medical-grade Adapter
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Packing Box
Packing Box is specifically designed to provide secure and protective storage for diode lasers.
LEARN MORE
Bare Fiber Holder
Facilitating the placement and stretching of optical fibers during the laser operation process.
LEARN MORE
Laser Protective Goggles
Essential protective equipment for laser operations, capable of effectively absorbing or reflecting specific wavelengths of laser light to prevent eye injury.
LEARN MORE
Medical-grade Plug
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Bluetooth Medical-grade Foot Pedal (Optional)
Foot pedal, tested for 500,000 cycles, with accompanying test reports, supporting both wired and wireless Bluetooth connectivity.(Optional)
LEARN MORE
Medical-grade Foot Pedal (Optional)
Waterproof foot pedal, passing the waterproof test, with a 500,000 times usage test report.（Optional）
LEARN MOREFrequently Asked Questions: PIOON S3 Plus Super-pulsed Dental Laser
What is the difference between the S3 Plus's 3-wavelength Super-Pulse design and a single-wavelength super-pulsed laser?
How does Super Pulse technology differ from traditional continuous wave (CW) lasers?
What is the "Dentist Care Mode" on the S3 Plus laser system?
Does the non-ablative gingival depigmentation treatment with the S3 Plus require anesthesia?
What exclusive protocols do the S3 Plus Color Editions (Rose Quartz Pink & Aurora Blue) offer?
- Bell's Palsy: Promotes facial nerve recovery and helps restore muscle function.
- TMJ Pain: Relieves severe jaw tension and effectively reduces chronic temporomandibular joint pain.
- TMJ Trauma: Accelerates deep tissue repair and reduces post-traumatic swelling.
- Tooth Pain: Provides rapid, localized pain relief and soothes acute dental inflammation.
- Herpes Simplex: Speeds up oral lesion healing and significantly shortens outbreak duration.
Scientific References
- Dompe, C., etc. Photobiomodulation—Underlying Mechanism and Clinical Applications. J. Clin. Med. 2020, 9(6), 1724 PubMed
- Beer F, et al. Reduction of collateral thermal impact of diode laser irradiation on soft tissue due to modified application parameters. Lasers in Medical Science. 2012;27(5):917–921. PubMed
