Laser Safety Enclosure with Custom Wavelength Protection
Designed to help reduce unintended exposure to stray and reflected laser radiation, the Laser Safety Enclosure creates a compact protective workspace for laser demonstrations, training, testing, and other controlled applications.

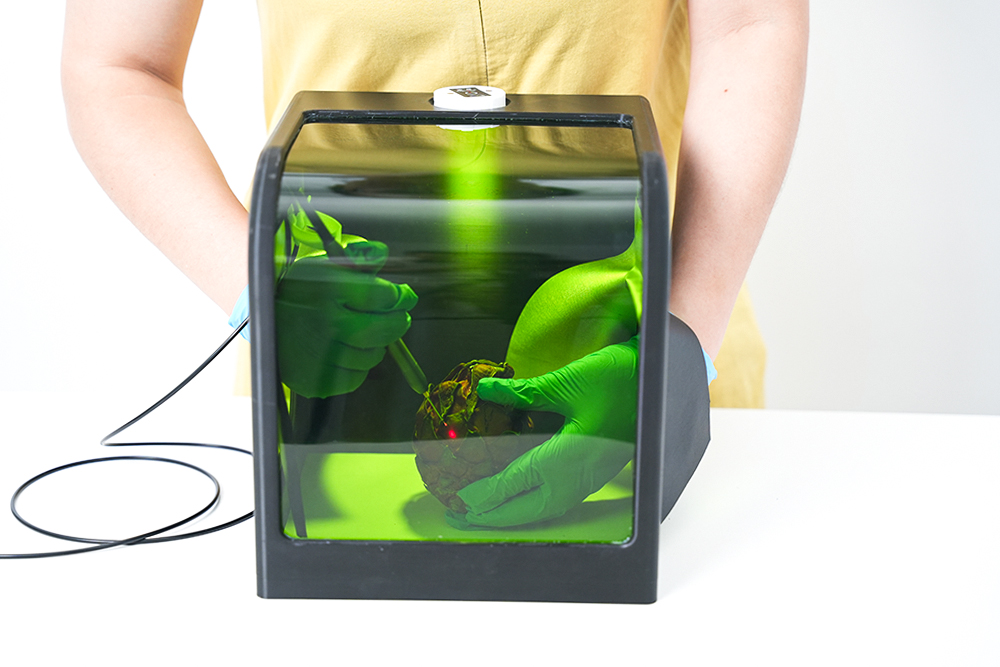

Laser Safety Enclosure
A Compact, Controlled Workspace for Safer Laser Operation
Designed to help reduce unintended exposure to stray and reflected laser radiation, the Laser Safety Enclosure creates a compact protective workspace for laser demonstrations, training, testing, and other controlled applications.
Customizable wavelength protection
OD 4 optical density protection
Detachable internal light source
Compact dimensions: 230 × 230 × 250 mm
Key Features
Customizable Wavelength Protection
The enclosure can be configured for specific laser wavelengths or wavelength combinations according to the user's laser system and application requirements.
OD 4 Optical Protection
Provides Optical Density 4 (OD 4) attenuation within the selected protection wavelength range, helping reduce transmitted laser energy and improving operational safety.
Detachable Internal Light Source
A removable internal illumination module provides additional lighting inside the enclosure, allowing users to clearly observe instruments, samples, and procedures.
Compact Desktop Design
With dimensions of only 230 × 230 × 250 mm, the enclosure fits easily on laboratory benches, treatment tables, training stations, and exhibition counters.

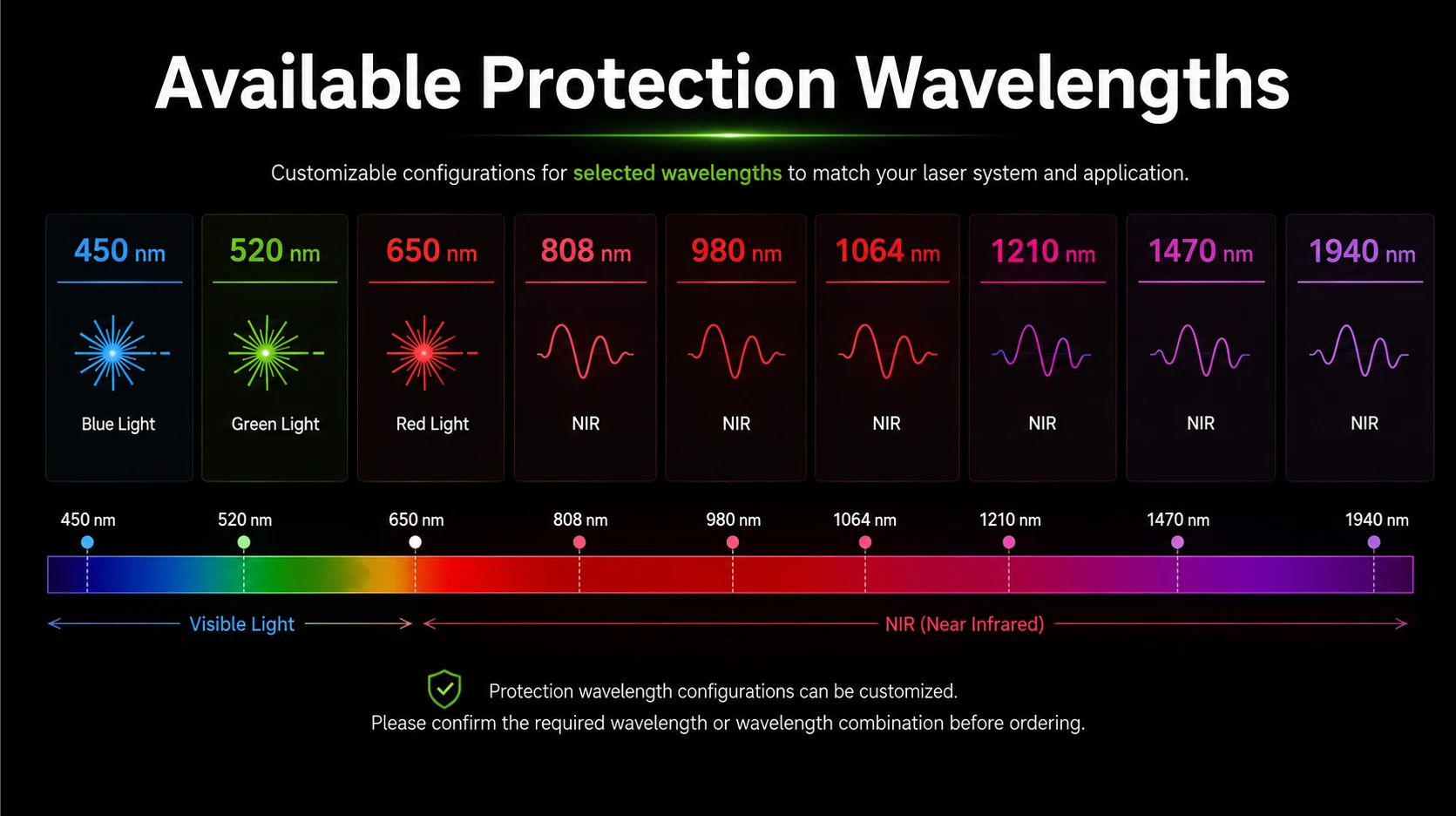

Available Protection Wavelengths
The Laser Safety Enclosure is available with customized protection configurations for selected laser wavelengths:
Protection wavelength configurations can be customized according to the specifications of the laser system. Please confirm the required wavelength or wavelength combination before ordering.
Design and Construction
The enclosure is designed to provide a practical and controlled workspace while maintaining visibility and accessibility during laser-related procedures.
Large protective viewing panels
Convenient side access openings
Detachable illumination module
Stable enclosed structure
Compact desktop footprint
Customizable wavelength configuration
Clear Observation and Flexible Operation
The protective viewing panels allow users to observe the working area clearly, while the side access openings enable convenient positioning and handling of instruments and samples within the enclosure.
Recommended Applications
The Laser Safety Enclosure is suitable for a variety of controlled laser environments, including:
Laser product demonstrations
Clinical education and training
Laboratory testing
Laser equipment inspection
Exhibitions and workshops
Other controlled laser procedures
It provides a compact protective workspace for observation, demonstration, training, and testing while maintaining visibility of the operating area.
Technical Specifications
| Product Name | Laser Safety Enclosure |
|---|---|
| Optical Density | OD 4 |
| Available Protection Wavelengths | 450 / 520 / 650 / 808 / 980 / 1064 / 1210 / 1470 / 1940 nm |
| Wavelength Configuration | Customizable |
| Dimensions (L × W × H) | 230 × 230 × 250 mm |
| Internal Light Source | Detachable |
| Structure | Enclosed Protective Design |
| Installation | Desktop Placement |
| Recommended Applications | Demonstration, Training, Testing, and Controlled Laser Operation |
Important Safety Information
The protection wavelength configuration must match the wavelength of the laser system being used. The enclosure is designed as an engineering control measure and does not automatically replace wavelength-appropriate laser safety eyewear or other required safety procedures.
A laser safety assessment should always be conducted based on the laser wavelength, output power, operating mode, and applicable local regulations before operation.
Custom Laser Protection Solutions
Need protection for a specific laser wavelength or application?
Contact our team to discuss your laser specifications and application requirements. We can help configure a suitable Laser Safety Enclosure for your system.
