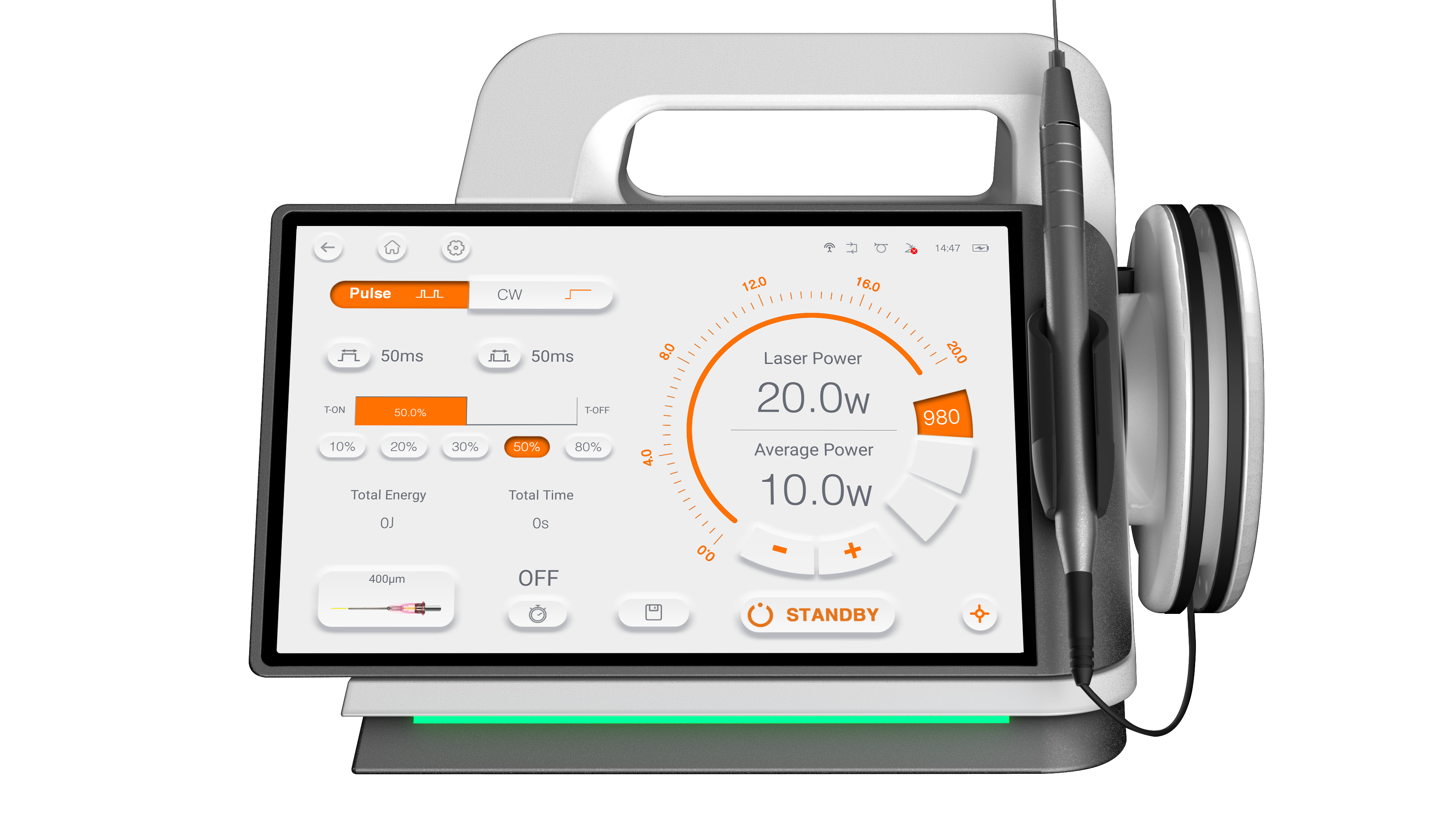

H1 Plus Dentistry Laser 20W: Precision, Minimal Heat, Superior Outcomes
H1 Plus dental laser is Pioon’s first super-pulsed 980nm dental system delivering up to 20 watts of peak power in short microsecond pulse widths. Unlike conventional diode dental lasers that only offer CW and basic pulsed modes, H1 Plus diode laser provides a safer, faster, and more precise soft-tissue surgery experience. Designed as a high-performance yet budget-friendly dentistry treatment solution, it gives clinics access to super-pulsed technology—allowing them to enjoy superior cutting efficiency, reduced thermal damage, and enhanced clinical outcomes at a price clinics can afford.
Precise Soft-Tissue Cutting
With an ultra-short pulse width, the super-pulsed mode concentrates energy exactly on the target tissue, minimizing the impact on surrounding healthy areas. H1 Plus laser diode delivers finer, cleaner, and more accurate cutting—helping reduce postoperative discomfort and improving patient experience.
Reduced Thermal Damage
H1 Plus laser dentistry significantly lowers thermal damage to oral soft tissue by keeping the laser beam highly focused and allowing sufficient cooling time between microsecond pulses. This controlled energy delivery enhances safety during soft-tissue cutting and ablation, where precision is essential.
Exceptional Surgical Performance

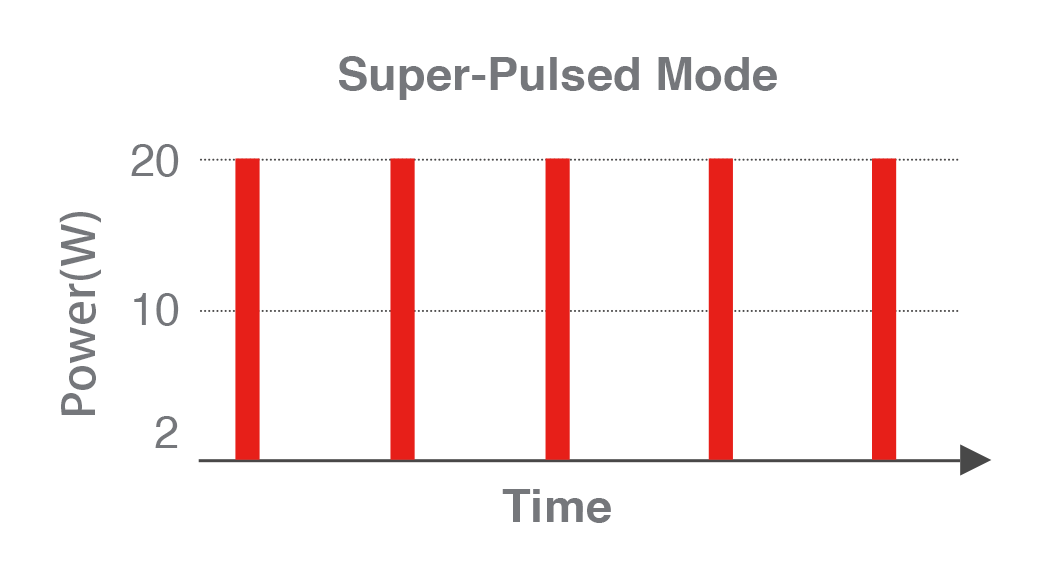

The super-pulsed mode delivers up to 20 watts of peak power in extremely short bursts, generating a highly concentrated energy density. This enables H1 Plus diode laser to produce fast, sharp, and precise incisions—making soft-tissue surgery more efficient and predictable.
H1 Plus Dentistry Laser: Key Features & Performance Advantages
Comprehensive Operation Assistance
H1 Plus includes 57+ built-in clinical cases and features an intelligent guidance
system.
Simply select the treatment description, and the device automatically recommends the most suitable
parameters.
Instant answers, instant guidance — everything you need with one tap.
Upgraded Hardware Performance
The peak power has been upgraded to 20W (compared to 10W in the previous H1
series).
Features include:
Classic 980nm clinical wavelength
Adjustable duty cycle: 10%–90%
Customizable super-pulsed mode
Delivering stronger energy output and greater surgical flexibility.
Powerful Multimedia Training System
The device comes with a rich library of multimedia clinical tutorials, helping doctors
quickly master dental laser techniques.
Includes:
Educational videos
Illustrated step-by-step instructions
Learn faster. Treat better.
One-Tap Expert / Preset Mode Switching
Switch between modes with a single touch:
Preset Mode: full guidance with automatic parameter recommendations
Expert Mode: complete control with full manual parameter adjustment
Perfect for both new users and experienced laser dentists.
Wireless Software Updates &
Clinical Parameter Library
Supports Direct WiFi for seamless software upgrades.
Dentists can instantly access the latest treatment parameter database, continuously refined by
laser experts.
Always stay updated with the best cutting and treatment settings.
Ultra-HD Touchscreen for Precision & Clarity
Equipped with a 2K Ultra-HD touchscreen, providing a smoother, clearer, and more intuitive
operating experience.
Every action is precise, responsive, and easy to navigate.
Exceptional Battery Life & Large Storage
Long-lasting high-capacity battery: supports up to one week of intensive clinical use on a full
charge
16 GB internal storage: easily accommodates tutorial videos, clinical cases, and additional
training materials
Power that lasts. Storage that grows with your practice.
H1 Plus Dental Laser Delivers Superior Clinical Performance
With its advanced super-pulsed mode, H1 Plus dental diode laser minimizes thermal damage while dramatically enhancing surgical precision — making it the perfect choice for clean, accurate, and predictable oral surgery procedures.| Continuous Wave (CW) | Pulsed Mode | Super-Pulsed Mode | |
|---|---|---|---|
| Postoperative Pain and Swelling |  |
 |
 |
| Thermal Damage | |
|
|
| LLLT Therapy | |
|
|
| Coagulation | |
|
|
| Cutting Effect | |
|
|
Excellent
Average
Not good
Discover How H1 Plus Performs In Different Clinical Applications.
Troughing
Aphthous Ulcers
Assisted Peri-lmplantitis
Root Canal Disinfection
Pocket Sterilization
Technical Specification
| Wavelength and Power | 980nm/20W |
| Operating Mode | CW/Pusled/Superpulsed |
| Frequency | Up to 20KHZ |
| Duty Cycle | Veriable |
| Display | 7 inches 2K Ultra HD touch screen |
| Control Software | Smart OS |
| Fiber Connection | 200μm，300μm and 400μm with standard SMA905 connector |
| Aiming Beam | Wavelength-650nm, Power-<2mW |
|
Dimensions
(L*W*H) |
225mm*150nm*150nm |
| Weight | <=2KG Lightweight |
| Battery Capacity | 3500mAh |
| Power Supply | 18VDC 5A |
The medical laser device complies with the following standards
| IEC 60601-1:2020 | IEC 62366-1:2020 | ISO 14971:2019 |
| IEC 60601-1-2:2020 | IEC 80601-2-60:2019 | ISO 24971:2020 |
| IEC 60601-2-22:2019 | IEC 62304:2015 | ISO 10993-1:2018 |
| IEC 60825-1:2014 | ISO 15223-1:2021 | ISO 14971:2019 |
Medical-Grade Instruments and Accessories
Handpieces
Fixed Focus Handpiece
Fixed Focus Handpiece – Precision and versatility in one. Ideal for soft tissue dental treatments，podiatry and telangiectasia reduction.
LEARN MORE
Photobiostimulation Handpiece
Low-level laser biostimulation can be applied in wound therapy to speed up the wound healing, prevent infection and relieve the pain
LEARN MORE
TMJ Therapy Handpiece
Primarily used for oral therapy, such as temporomandibular joint (TMJ) therapy, it also includes small-sized TMJ tips for broader and more versatile applications.
LEARN MORE
Whitening Handpiece
Used for teeth whitening, it can divide the teeth area into four quadrants, with the whitening head precisely the width of one quadrant.
LEARN MORE
Multi-functional Dental Handpiece
A direct connection fiber tip holder compatible with therapy handles, offering excellent compatibility and enabling multifunctional application
LEARN MOREMedical Fibers and Tips
Dental Laser Radial Tips
Experience 360° precision with Pioon Dental Radial Fiber Tips — ideal for periodontal pockets, root canal disinfection, and peri-implant care.
LEARN MORE
Dental Laser Tip 200μm
The standard version is 15mm, with additional options of 5mm, 15mm, and 25mm tips, along with a 15mm circular tip suitable for root canal disinfection.
LEARN MORE
Dental Laser Tip 300μm
The standard version is 10mm, with additional options of 5mm, 10mm, 15mm, 50mm, and 100mm tips.
LEARN MORE
Bare Fiber
Bare Fibers(200μm) Length: 3m;Bare Fibers(300μm) Length: 3m;Bare Fibers(400μm) Length: 3m
LEARN MORE
Dental Laser Tip 400μm
The standard version is 15mm, with additional options of 5mm, 15mm, and 25mm tips, along with a 15mm circular tip suitable for incision, excision, vaporization, ablation, coagulation, as well as soft-tissue curettage and sulcular debridement.
LEARN MOREAccessories
Flip-Up Loupes Laser Safety Goggles (Optional)
All-in-one laser safety goggles with flip-up 2.5X loupes! Adjustable, CE-certified, and full-spectrum protection from 200–1800nm. See clearer, work safer — perfect for dentists, surgeons, and laser pros.
LEARN MORE
Professional Laser Safety Glasses - Made in Germany (Recommend)
Essential protective gear for laser operations, designed to absorb or reflect specific laser wavelengths effectively, safeguarding the eyes from harm. Compliant with the European Committee for Standardization (CEN) EN 207 standard.
LEARN MORE
Multilingual Instruction Manual
A multilingual instruction manual can enhance user experience, meet regulatory requirements, boost brand image, and improve customer support efficiency.
LEARN MORE
Medical-grade Adapter
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Packing Box
Packing Box is specifically designed to provide secure and protective storage for diode lasers.
LEARN MORE
Bare Fiber Holder
Facilitating the placement and stretching of optical fibers during the laser operation process.
LEARN MORE
Laser Protective Goggles
Essential protective equipment for laser operations, capable of effectively absorbing or reflecting specific wavelengths of laser light to prevent eye injury.
LEARN MORE
Medical-grade Plug
Compliant with IEC 60601-1, an international standard regarding the safety and performance of medical electrical equipment, ensuring enhanced safety and reliability.
LEARN MORE
Bluetooth Medical-grade Foot Pedal (Optional)
Foot pedal, tested for 500,000 cycles, with accompanying test reports, supporting both wired and wireless Bluetooth connectivity.(Optional)
LEARN MORE
Medical-grade Foot Pedal (Optional)
Waterproof foot pedal, passing the waterproof test, with a 500,000 times usage test report.（Optional）
LEARN MORE
